Vga Ofc Converter Single Mode Fiber Upto 10Km Single Fiber 1080P Sc 1310Nm 10Km Pair

JTVGO-10 OFC Media Converter
Secured
Advanced Security
Free Shipping
Free delivery over ₹100,000
Free Returns
Hassle free returns

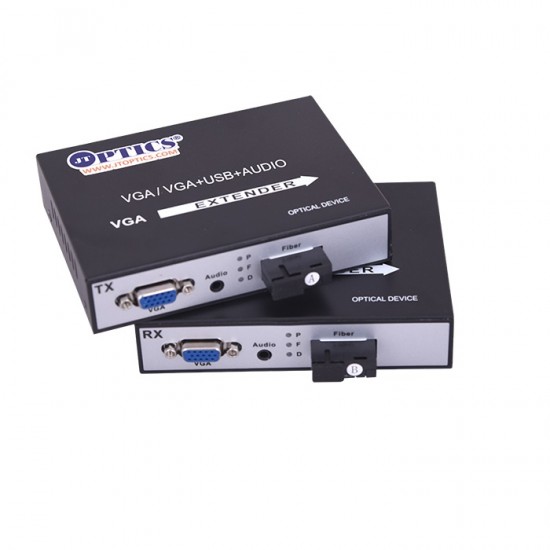

Vga Ofc Converter Single Mode Fiber Upto 10Km Single Fiber 1080P Sc 1310Nm 10Km Pair
VGA to Fiber Optics Transmitter/Receiver digitally transmits high-resolution VGA/RGB (up to WXGA) and stereo audio over one single-core fiber, single-mode, 1310 nm wavelength. Ideal for point-to-point, point-to-multipoint and drop-and-repeat applications, it supports VGA, SVGA, XGA and WXGA (640 x 4..
SPECIFICATIONS
Connector Standard 3.5 mm stereo headphone jack
Number of Channels 1-channel
Video type RGB with single and sync H, V
Data Rate 2.50
Wavelength 1310nm　
Bandwidth Rating 300MHz
Input level 0.7Vp-p
Bit width 10bit
Compatibility Using PS2 to USB cable, it works fine
Weighted signal-to-noise ratio ≥90 dB
Resolution Max1080P@60Hz
Interface DB-15
Output level 0.7Vp-p
Fiber optic Single-mode, 10Km
Max. link loss 12dB（option）
Receiver Sensitivity ≥20dBm
Signal level RS232 standard level
Signal-to-Noise Ratio(SNR) ≥115200bps
Total harmonic distortion ≤1%
Audio coding 24bit
Input/output Impedance 600Ω or 100KΩ
Input/output interface  Terminal block
All our own products can be purchased direct online or via our sales team. E-Mail: sales(@)jtoptics.com Phone: +91-8693099309 / 9699789777
  • Stock: In Stock
  • Model: JTVGO-10
  • MPN: JTVGO-10
Add to Cart
Buy Now Ask Question
Eligible for Free Shipping
This product ships free when your order total crosses ₹100,000.

VGA to Fiber Optics Transmitter/Receiver digitally transmits high-resolution VGA/RGB (up to WXGA) and stereo audio over one single-core fiber, single-mode, 1310 nm wavelength. Ideal for point-to-point, point-to-multipoint and drop-and-repeat applications, it supports VGA, SVGA, XGA and WXGA (640 x 480, 1024*768, and 1280*1024, up to 1366 x 768) or RGBHV format




Audio Channel: 1 channel bidirectional stereo Audio

Video Channel: 1 channel Unidirectional

Transmission Distance:10km

Fiber Type: Single-mode Simplex

CRAFT: uncompressed technology

Highest resolution: 1920x1080@60

SPECIFICATIONS
Connector Standard 3.5 mm stereo headphone jack
Number of Channels 1-channel
Video type RGB with single and sync H, V
Data Rate 2.50
Wavelength 1310nm　
Bandwidth Rating 300MHz
Input level 0.7Vp-p
Bit width 10bit
Compatibility Using PS2 to USB cable, it works fine
Weighted signal-to-noise ratio ≥90 dB
Resolution Max1080P@60Hz
Interface DB-15
Output level 0.7Vp-p
Fiber optic Single-mode, 10Km
Max. link loss 12dB（option）
Receiver Sensitivity ≥20dBm
Signal level RS232 standard level
Signal-to-Noise Ratio(SNR) ≥115200bps
Total harmonic distortion ≤1%
Audio coding 24bit
Input/output Impedance 600Ω or 100KΩ
Input/output interface  Terminal block

Write a review

All our own products can be purchased direct online or via our sales team. E-Mail: sales(@)jtoptics.com Phone: +91-8693099309 / 9699789777
