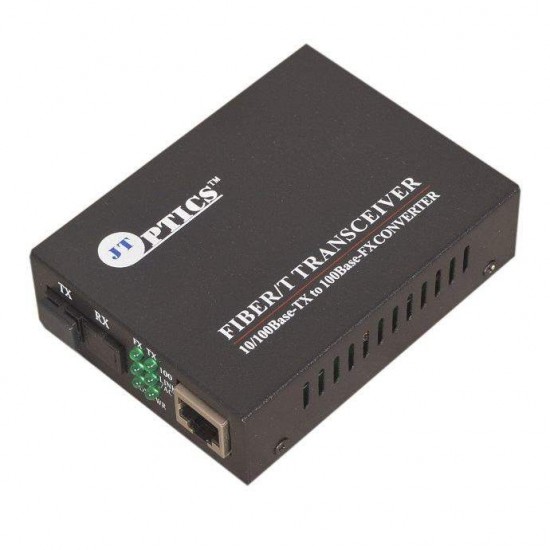

100Base-T To 100Base-Fx Media Converter Single Mode Single Fiber Sc 1310Nm 20Km Unmanaged Pair

JTSMC1SSFSCEU20 OFC Media Converter
2-3 Days
Secured
Advanced Security
Free Shipping
Free delivery over ₹100,000
Free Returns
Hassle free returns
100Base-T To 100Base-Fx Media Converter Single Mode Single Fiber Sc 1310Nm 20Km Unmanaged Pair
JTOPTICS Single fiber media converter, also referred to as BiDi or simplex media converter, can make the customers to extend the Ethernet connections across a single fiber link. JTOPTICS BIDI Media Converter provides a 10/100BaseT/TX auto-negotiating RJ-45 twisted-pair connector port with Auto-MDIX ..
SPECIFICATIONS
Connector UTP: RJ-45 connector, Optical: SC connector (Single Fiber)
Transmission Type 10/100M FDX/HDX
Wavelength Single mode: 1310/1550nm up to 20Km
Data Buffer 512 Kbit
Mode Single Fiber (Unmanaged)
Operation mode Full duplex mode or half duplex mode
Temperature (-)30 - 60°C (Operating); -45 - 75°C (Storage)
Humidity 5% to 80% non-condensing (Operating)
Power Supply External 1A,+5VDC
Dimension 95mm x70mm x 26mm (LxWxH); 0.3 kg
Power Consumption 2.7W
Includes Power Supply
Compliance RoHS & REACH
All our own products can be purchased direct online or via our sales team. E-Mail: sales(@)jtoptics.com Phone: +91-8693099309 / 9699789777
  • Stock: 2-3 Days
  • Model: JTSMC1SSFSCEU20
  • MPN: JTSMC1SSFSCEU20
₹ 10.00

JTOPTICS Single fiber media converter, also referred to as BiDi or simplex media converter, can make the customers to extend the Ethernet connections across a single fiber link. JTOPTICS BIDI Media Converter provides a 10/100BaseT/TX auto-negotiating RJ-45 twisted-pair connector port with Auto-MDIX capability for more convenient connection on single fiber. Built-in 10/100 switch enables the fiber able connection to operate at 100 Mbps connected to either a 10BaseT or a 100BaseTX network.



Complied with IEEE802.3 10Base-T, IEEE802.3u 100Base-T and 100Base-FX

Auto-adaptation

Support Full/half-duplex mode at twisted pair port

Support Auto MDI/MDIX without need of cable selection

Up to 6 LEDs for status indication

External and built-in DC power supplies

128 kb data integrated storage

SPECIFICATIONS
Connector UTP: RJ-45 connector, Optical: SC connector (Single Fiber)
Transmission Type 10/100M FDX/HDX
Wavelength Single mode: 1310/1550nm up to 20Km
Data Buffer 512 Kbit
Mode Single Fiber (Unmanaged)
Operation mode Full duplex mode or half duplex mode
Temperature (-)30 - 60°C (Operating); -45 - 75°C (Storage)
Humidity 5% to 80% non-condensing (Operating)
Power Supply External 1A,+5VDC
Dimension 95mm x70mm x 26mm (LxWxH); 0.3 kg
Power Consumption 2.7W
Includes Power Supply
Compliance RoHS & REACH
