Unmanaged Sfp Based Ethernet Media Converter

JTFMC2SF22EU OFC Media Converter
Secured
Advanced Security
Free Shipping
Free delivery over ₹100,000
Free Returns
Hassle free returns

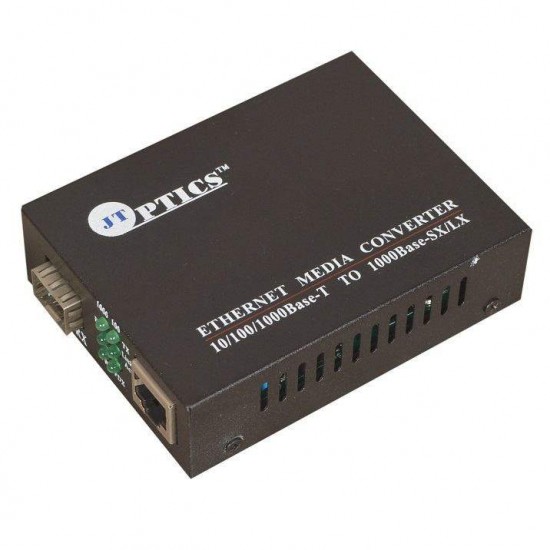

Unmanaged Sfp Based Ethernet Media Converter
JTOPTICS SFP based Ethernet to Fiber Converters provide an economical path to extend the distance of an existing network, the life of non-fiber based equipment, or the distance between two devices.  The pluggable fiber optics port allows for flexible network configurations using SFP transceivers sup..
SPECIFICATIONS
Connector UTP RJ-45 connector, Optical SFP Port (LC Connector)
Transmission Type 10/100/1000M FDX/HDX
Wavelength Single mode: 1310/1550nm up to 20Km
Data Buffer 512 Kbit
Mode Dual Fiber (Unmanaged)
Operation mode Full duplex mode or half duplex mode
Temperature (-)30 - 60°C (Operating); -45 - 75°C (Storage)
Humidity 5% to 80% non-condensing (Operating)
Power Supply External 1A,+5VDC
Dimension 95mm x70mm x 26mm (LxWxH); 0.3 kg
Power Consumption 2.8W
Includes Power Supply
Compliance RoHS & REACH
All our own products can be purchased direct online or via our sales team. E-Mail: sales(@)jtoptics.com Phone: +91-8693099309 / 9699789777
  • Stock: In Stock
  • Model: JTFMC2SF22EU
  • MPN: JTFMC2SF22EU
₹ 1,400.00

JTOPTICS SFP based Ethernet to Fiber Converters provide an economical path to extend the distance of an existing network, the life of non-fiber based equipment, or the distance between two devices.  The pluggable fiber optics port allows for flexible network configurations using SFP transceivers supplied by us or other manufacturers of MSA compliant SFPs. For steady and reliable performance it is designed in accordance with Ethernet standard and lightning protection, it is particularly applicable to a wide range of fields requiring a variety of broadband data network and high-reliability data transmission.



Complied with IEEE802.3 10Base-T, IEEE802.3u 100Base-T

IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-FX

Auto-adaptation rate

Support Full/half-duplex mode at twisted pair port

Support Auto MDI/MDIX without need of cable selection

Up to 6 LEDs for status indication

External and built-in DC power supplies

Support up to 1024 MAC addresses

512 kb data integrated storage

SPECIFICATIONS
Connector UTP RJ-45 connector, Optical SFP Port (LC Connector)
Transmission Type 10/100/1000M FDX/HDX
Wavelength Single mode: 1310/1550nm up to 20Km
Data Buffer 512 Kbit
Mode Dual Fiber (Unmanaged)
Operation mode Full duplex mode or half duplex mode
Temperature (-)30 - 60°C (Operating); -45 - 75°C (Storage)
Humidity 5% to 80% non-condensing (Operating)
Power Supply External 1A,+5VDC
Dimension 95mm x70mm x 26mm (LxWxH); 0.3 kg
Power Consumption 2.8W
Includes Power Supply
Compliance RoHS & REACH
