Ethernet Media Converter 10/100Base-Tx To 100Base-Fx Industrial Grade Single Mode Dual Fiber 1310Nm Sc 20Km Unmanaged

JTIMC1SDFSCEU20 OFC Media Converter
2-3 Days
Secured
Advanced Security
Free Shipping
Free delivery over ₹100,000
Free Returns
Hassle free returns

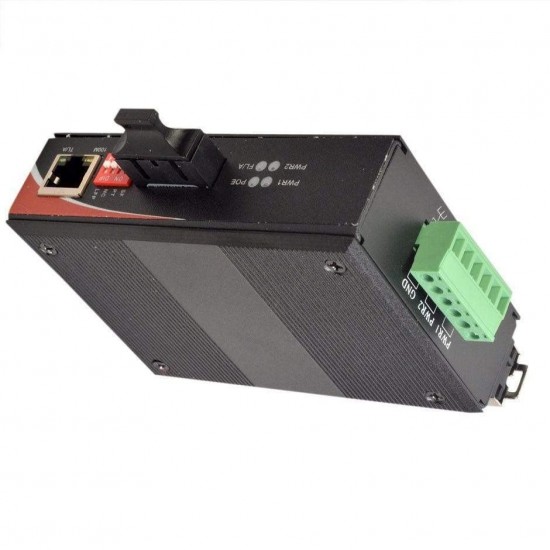

Ethernet Media Converter 10/100Base-Tx To 100Base-Fx Industrial Grade Single Mode Dual Fiber 1310Nm Sc 20Km Unmanaged
JTOPTICS Industrial Ethernet Media Converters address the need for transparently connecting 10/100 Ethernet equipment that operate in extreme temperatures to fiber optic cable. Our Media Converters will operate in industrial grade temperatures of -40F to +167F (-40C to +75C). Built-in 10/100 switch ..
SPECIFICATIONS
Connector UTP: RJ-45 connector, Optical: SC connector
Transmission Type 10/100M FDX/HDX
Wavelength Single mode: 1310/1550nm up to 20Km
Data Buffer 512 Kbit
Mode Dual Fiber (Unmanaged)
Operation mode Full duplex mode or half duplex mode
Temperature (-)40 - 75°C (Operating); -40 - 85°C (Storage)
Humidity 5% to 90% non-condensing (Operating)
Power Supply External 1A,+5VDC
Dimension 120 x 80 x 26 mm (LxWxH); 0.3 kg
Power Consumption 2.4W
Includes Power Supply
Compliance RoHS & REACH
All our own products can be purchased direct online or via our sales team. E-Mail: sales(@)jtoptics.com Phone: +91-8693099309 / 9699789777
  • Stock: 2-3 Days
  • Model: JTIMC1SDFSCEU20
  • MPN: JTIMC1SDFSCEU20
₹ 4,800.00

JTOPTICS Industrial Ethernet Media Converters address the need for transparently connecting 10/100 Ethernet equipment that operate in extreme temperatures to fiber optic cable. Our Media Converters will operate in industrial grade temperatures of -40F to +167F (-40C to +75C). Built-in 10/100 switch enables the fiber able connection to operate at 100 Mbps connected to either a 10BaseT or a 100BaseTX network, while remaining completely 100BaseFX standard-compliant. Fiber connection can also operate in full duplex mode whether the RJ-45 port is connected to a full duplex switch or a half duplex hub.



10/100BaseT(X) auto-negotiation and auto-MDI

Link Fault Pass-Through (LFP)

Power failure, port break alarm by relay output

-40 to 75°C operating temperature range (T models)

Designed for hazardous locations (Class 1 Div. 2/Zone 2, IECEx)

Reliable and stable performance

SPECIFICATIONS
Connector UTP: RJ-45 connector, Optical: SC connector
Transmission Type 10/100M FDX/HDX
Wavelength Single mode: 1310/1550nm up to 20Km
Data Buffer 512 Kbit
Mode Dual Fiber (Unmanaged)
Operation mode Full duplex mode or half duplex mode
Temperature (-)40 - 75°C (Operating); -40 - 85°C (Storage)
Humidity 5% to 90% non-condensing (Operating)
Power Supply External 1A,+5VDC
Dimension 120 x 80 x 26 mm (LxWxH); 0.3 kg
Power Consumption 2.4W
Includes Power Supply
Compliance RoHS & REACH
