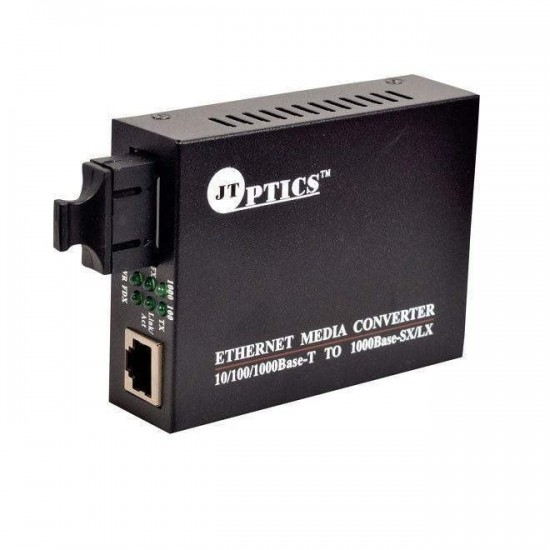

1000Base-T To 1000Base-Fx Media Converter Single Mode Dual Fiber 1310Nm Sc 20Km Unmanaged

JTSMC2SDFSCEU20 OFC Media Converter
Hot
Secured
Advanced Security
Free Shipping
Free delivery over ₹100,000
Free Returns
Hassle free returns
1000Base-T To 1000Base-Fx Media Converter Single Mode Dual Fiber 1310Nm Sc 20Km Unmanaged
JTOPTICS Gigabit Ethernet to Dual fiber converter can convert and transmit Gigabit Ethernet networks into Gigabit fiber optic networks on dual fiber, it is used in Gigabit Ethernet as copper to fiber conversion equipment. Each Media Converter provides a 10/100/1000BaseT/TX auto-negotiating RJ-45 twi..
SPECIFICATIONS
Connector UTP: RJ-45 connector, Optical: SC connector (Dual Fiber)
Transmission Type 10/100/1000M FDX/HDX
Wavelength Single mode: 1310/1550nm up to 20Km
Data Buffer 512 Kbit
Mode Dual Fiber (Unmanaged)
Operation mode Full duplex mode or half duplex mode
Temperature (-)30 - 60°C (Operating); -45 - 75°C (Storage)
Humidity 5% to 80% non-condensing (Operating)
Power Supply External 1A,+5VDC
Dimension 95mm x70mm x 26mm (LxWxH); 0.3 kg
Power Consumption 2.8W
Includes Power Supply
Compliance RoHS & REACH
All our own products can be purchased direct online or via our sales team. E-Mail: sales(@)jtoptics.com Phone: +91-8693099309 / 9699789777
  • Stock: In Stock
  • Model: JTSMC2SDFSCEU20
  • MPN: JTSMC2SDFSCEU20
₹ 2,400.00

JTOPTICS Gigabit Ethernet to Dual fiber converter can convert and transmit Gigabit Ethernet networks into Gigabit fiber optic networks on dual fiber, it is used in Gigabit Ethernet as copper to fiber conversion equipment. Each Media Converter provides a 10/100/1000BaseT/TX auto-negotiating RJ-45 twisted-pair connector port with Auto-MDIX capability for more convenient connection. Built-in 10/100/1000 switch enables the fiber able connection to operate at 1000 Mbps connected to either a 10BaseT or 100BaseTX or 1000BaseTX network, while remaining completely 1000BaseFX standard-compliant



10/100/1000Mbps auto-negotiation

IEEE 802.3x full-duplex flow control and back pressure half-duplex flow control

Supports MAC self-learning

Standards: Complied with IEEE802.3 10Base-T, IEEE802.3u 100Base-T IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-FX

Support Auto MDI/MDIX without need of cable selection

LED status of Link activity

SPECIFICATIONS
Connector UTP: RJ-45 connector, Optical: SC connector (Dual Fiber)
Transmission Type 10/100/1000M FDX/HDX
Wavelength Single mode: 1310/1550nm up to 20Km
Data Buffer 512 Kbit
Mode Dual Fiber (Unmanaged)
Operation mode Full duplex mode or half duplex mode
Temperature (-)30 - 60°C (Operating); -45 - 75°C (Storage)
Humidity 5% to 80% non-condensing (Operating)
Power Supply External 1A,+5VDC
Dimension 95mm x70mm x 26mm (LxWxH); 0.3 kg
Power Consumption 2.8W
Includes Power Supply
Compliance RoHS & REACH
