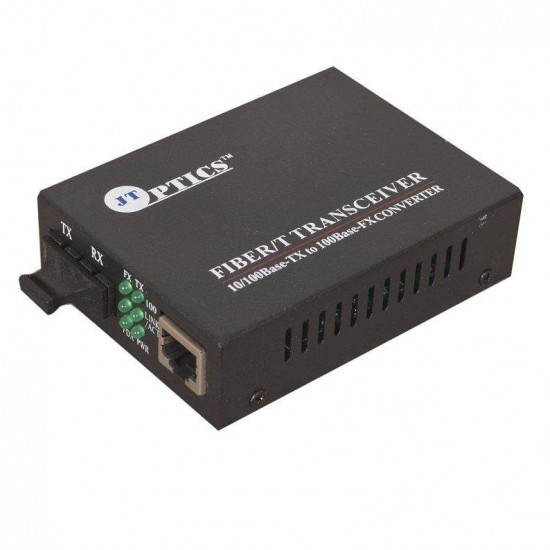

Ethernet Media Converter 100Base-T To 100Base-Fx Single Mode Dual Fiber Sm 1310Nm Sc 20Km Unmanaged

JTSMC1SDFSCEU20 OFC Media Converter
Secured
Advanced Security
Free Shipping
Free delivery over ₹100,000
Free Returns
Hassle free returns
Ethernet Media Converter 100Base-T To 100Base-Fx Single Mode Dual Fiber Sm 1310Nm Sc 20Km Unmanaged
JTOPTICS Ethernet to Dual fiber converter can convert and transmit Ethernet networks into fiber optic networks on dual fiber, it is used in Ethernet as copper to fiber conversion equipment. Each Media Converter provides a 10/100BaseT/TX auto-negotiating RJ-45 twisted-pair connector port with Auto-MD..
SPECIFICATIONS
Connector UTP: RJ-45 connector, Optical: SC connector (Dual Fiber)
Transmission Type 10/100M FDX/HDX
Wavelength Single mode: 1310/1550nm up to 20Km
Data Buffer 512 Kbit
Mode Dual Fiber (Unmanaged)
Operation mode Full duplex mode or half duplex mode
Temperature (-)30 - 60°C (Operating); -45 - 75°C (Storage)
Humidity 5% to 80% non-condensing (Operating)
Power Supply External 1A,+5VDC
Dimension 95mm x70mm x 26mm (LxWxH); 0.3 kg
Power Consumption 2.5W
Includes Power Supply
Compliance RoHS & REACH
All our own products can be purchased direct online or via our sales team. E-Mail: sales(@)jtoptics.com Phone: +91-8693099309 / 9699789777
  • Stock: In Stock
  • Model: JTSMC1SDFSCEU20
  • MPN: JTSMC1SDFSCEU20
₹ 1,200.00
Add to Cart
Buy Now Ask Question
Eligible for Free Shipping
This product ships free when your order total crosses ₹100,000.

JTOPTICS Ethernet to Dual fiber converter can convert and transmit Ethernet networks into fiber optic networks on dual fiber, it is used in Ethernet as copper to fiber conversion equipment. Each Media Converter provides a 10/100BaseT/TX auto-negotiating RJ-45 twisted-pair connector port with Auto-MDIX capability for more convenient connection. Built-in 10/100 switch enables the fiber able connection to operate at 100 Mbps connected to either a 10BaseT or 100BaseTX network, while remaining completely 100BaseFX standard-compliant



Complied with IEEE802.3 10Base-T, IEEE802.3u 100Base-T and 100Base-FX

Auto-adaptation

Support Full/half-duplex mode at twisted pair port

Support Auto MDI/MDIX without need of cable selection

Up to 6 LEDs for status indication

External and built-in DC power supplies

128 kb data integrated storage

SPECIFICATIONS
Connector UTP: RJ-45 connector, Optical: SC connector (Dual Fiber)
Transmission Type 10/100M FDX/HDX
Wavelength Single mode: 1310/1550nm up to 20Km
Data Buffer 512 Kbit
Mode Dual Fiber (Unmanaged)
Operation mode Full duplex mode or half duplex mode
Temperature (-)30 - 60°C (Operating); -45 - 75°C (Storage)
Humidity 5% to 80% non-condensing (Operating)
Power Supply External 1A,+5VDC
Dimension 95mm x70mm x 26mm (LxWxH); 0.3 kg
Power Consumption 2.5W
Includes Power Supply
Compliance RoHS & REACH

Write a review

All our own products can be purchased direct online or via our sales team. E-Mail: sales(@)jtoptics.com Phone: +91-8693099309 / 9699789777
E-Mail
Tags: ethernet media converter single mode dual fiber
