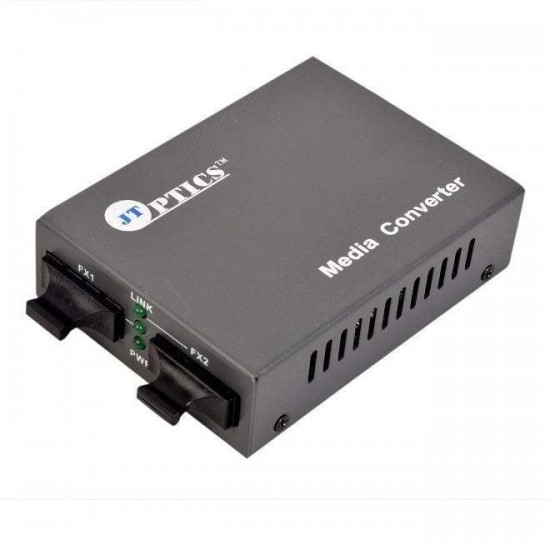

Mm To Sm Ofc Media Converter Multimode To Single Mode Converter Sc Dual Fiber Upto 20Km Unmanaged

JTSMC1SCEU20 OFC Media Converter
Secured
Advanced Security
Free Shipping
Free delivery over ₹100,000
Free Returns
Hassle free returns
Mm To Sm Ofc Media Converter Multimode To Single Mode Converter Sc Dual Fiber Upto 20Km Unmanaged
JTOPTICS Single mode to Multimode Media Optical Converter is a device to conduct the transparent conversion between the media of single mode and multimode optical fiber. It is used in the applications where media conversion required between multimode segments separated by long distances. We offer di..
SPECIFICATIONS
Transceiver Type Duplex SC
Wavelength Multimode: 850nm (≤550m) Single mode: 1310nm up to 20Km
Temperature 0 - 50°C (Operating); -45 - 80°C (Storage)
Humidity 5%-80% non-condensing (Operating); 10%-90% (Storage)
Dimension 95mm x70mm x 26mm (LxWxH); 0.3 kg
Power Consumption 2.8W
Includes Power Supply
Compliance RoHS & REACH
All our own products can be purchased direct online or via our sales team. E-Mail: sales(@)jtoptics.com Phone: +91-8693099309 / 9699789777
  • Stock: In Stock
  • Model: JTSMC1SCEU20
  • MPN: JTSMC1SCEU20
₹ 3,200.00

JTOPTICS Single mode to Multimode Media Optical Converter is a device to conduct the transparent conversion between the media of single mode and multimode optical fiber. It is used in the applications where media conversion required between multimode segments separated by long distances. We offer different single mode to multimode media converters from 850nm to 1310nm wavelengths. Multimode to Single mode Converters provide efficient solutions for interconnecting multimode fiber LANs over longer distances by integrating single mode fiber optic cable into the LAN. The converter also enables Ethernet LAN and WAN connectivity, by providing a multimode interface to single mode fiber carrier demarcation points.



Extend a Ethernet backbone connection up to 20 km for MAN applications

Converts Multimode  to Single mode  (and vice versa)

Converts Single mode to Single mode or Multimode to Multimode

Increases Distance Between Nodes

Cross Connects Fiber Types

Performs Optical Repeater Function

SPECIFICATIONS
Transceiver Type Duplex SC
Wavelength Multimode: 850nm (≤550m) Single mode: 1310nm up to 20Km
Temperature 0 - 50°C (Operating); -45 - 80°C (Storage)
Humidity 5%-80% non-condensing (Operating); 10%-90% (Storage)
Dimension 95mm x70mm x 26mm (LxWxH); 0.3 kg
Power Consumption 2.8W
Includes Power Supply
Compliance RoHS & REACH

Write a review

All our own products can be purchased direct online or via our sales team. E-Mail: sales(@)jtoptics.com Phone: +91-8693099309 / 9699789777
