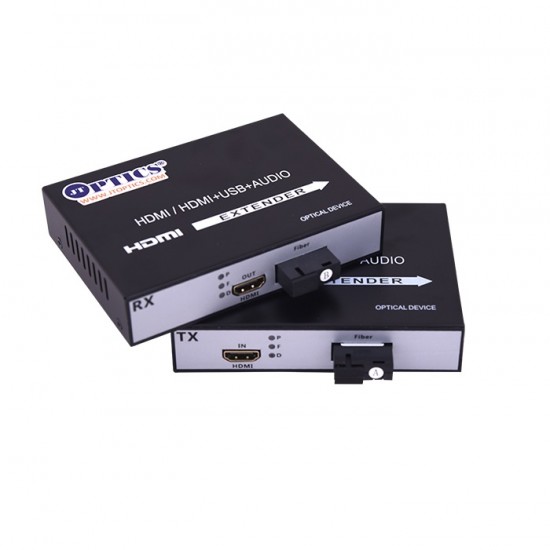

Hdmi Ofc Converter Single Mode Fiber Upto 10Km Single Fiber 1080P Sc 1310Nm 10Km Pair

JTHDO-10 OFC Media Converter
Secured
Advanced Security
Free Shipping
Free delivery over ₹100,000
Free Returns
Hassle free returns
Hdmi Ofc Converter Single Mode Fiber Upto 10Km Single Fiber 1080P Sc 1310Nm 10Km Pair
Full digital video  (HDMI) to Optical transceiver, it designed on real-time synchronize one-way high-definition HDMI video and data/ switching value in single-core optical fiber and achieve lossless and high-quality transfer. Advanced high-stability components are used in optic circuit and core circ..
SPECIFICATIONS
Number of Channels 1 channel
Differential Gain <1% (typical)
Video Bandwidth TMDS MAX 10.8GHz
Video Interface HDMI A Type
Dimension 5”L x 3.375”W x 0.875”H; 0.5kg
Power Consumption 8 W
Differential Phase <0.6° (typical)"1"
HDMI version 1.0~1.2a,1.3 1.4
Color depth TMDS MAX 48 bit/px
Supported Video MAX 1080P@1920x1080/60Hz
Optical Fiber Optical Port: FC UPC Single-Mode: up to 10Km Wavelength: 1310/1550nm
Operating Environment Operating Voltage : AC 220V/ DC +5V
All our own products can be purchased direct online or via our sales team. E-Mail: sales(@)jtoptics.com Phone: +91-8693099309 / 9699789777
  • Stock: In Stock
  • Model: JTHDO-10
  • MPN: JTHDO-10
Add to Cart
Buy Now Ask Question
Eligible for Free Shipping
This product ships free when your order total crosses ₹100,000.

Full digital video  (HDMI) to Optical transceiver, it designed on real-time synchronize one-way high-definition HDMI video and data/ switching value in single-core optical fiber and achieve lossless and high-quality transfer. Advanced high-stability components are used in optic circuit and core circuit of JT high-definition full digital video optical transmitter and receiver, and all optical/electric interfaces are in accordance with international standards, free from prior adjustment to mounting and applicable in various operating environments.



FS3511-T/R supports WUXGA (1920 x 1200 @ 60 Hz) or 1080P/1080i/1080p

Support HDTV highest resolution 1080P3

Support HDMI interface, compatible with HDMI 1.2a standard

Support input and output signal indicating

Plug and Play

VIDEO SPEC: 1080P 30 H

SPECIFICATIONS
Number of Channels 1 channel
Differential Gain <1% (typical)
Video Bandwidth TMDS MAX 10.8GHz
Video Interface HDMI A Type
Dimension 5”L x 3.375”W x 0.875”H; 0.5kg
Power Consumption 8 W
Differential Phase <0.6° (typical)"1"
HDMI version 1.0~1.2a,1.3 1.4
Color depth TMDS MAX 48 bit/px
Supported Video MAX 1080P@1920x1080/60Hz
Optical Fiber Optical Port: FC UPC Single-Mode: up to 10Km Wavelength: 1310/1550nm
Operating Environment Operating Voltage : AC 220V/ DC +5V

Write a review

All our own products can be purchased direct online or via our sales team. E-Mail: sales(@)jtoptics.com Phone: +91-8693099309 / 9699789777
E-Mail
Tags: hdmi ofc converter
Quickview
Ethernet Media Converter 10/100Base-Tx To 100Base-Fx Industrial Grade Single Mode Dual Fiber 1310Nm Sc 20Km Unmanaged
2-3 Days
Model: JTIMC1SDFSCEU20
Ethernet Media Converter 10/100Base-Tx To 100Base-Fx Industrial Grade Single Mode Dual Fiber 1310Nm Sc 20Km Unmanaged
JTOPTICS Industrial Ethernet Media Converters address the need for transparently connecting 10/100 Ethernet equipment that operate in extreme temperat..
Add to Cart
Quickview
Unmanaged Sfp Based Ethernet Media Converter
Model: JTFMC2SF22EU
Unmanaged Sfp Based Ethernet Media Converter
JTOPTICS SFP based Ethernet to Fiber Converters provide an economical path to extend the distance of an existing network, the life of non-fiber based ..
Add to Cart
Quickview

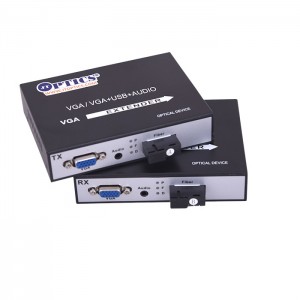

Vga Ofc Converter Single Mode Fiber Upto 10Km Single Fiber 1080P Sc 1310Nm 10Km Pair
Model: JTVGO-10
Vga Ofc Converter Single Mode Fiber Upto 10Km Single Fiber 1080P Sc 1310Nm 10Km Pair
VGA to Fiber Optics Transmitter/Receiver digitally transmits high-resolution VGA/RGB (up to WXGA) and stereo audio over one single-core fiber, single-..
Add to Cart
Quickview

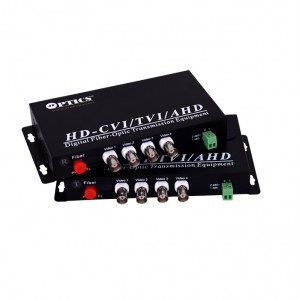

4 Channel Hd Video To Ofc Converter With Rs485 Support Ahd Hdcvi Hdtvi 1080P Smf Fc 20Km Pair
Model: JTHDVC4V1DSFC20EU
4 Channel Hd Video To Ofc Converter With Rs485 Support Ahd Hdcvi Hdtvi 1080P Smf Fc 20Km Pair
HDTVI/HDCVI/AHD Video to Optical fiber converter required to transmit HDTVI/HDCVI/AHD Camera Video to long distance over optical fiber. 4 Channel HDTV..
Add to Cart
Quickview

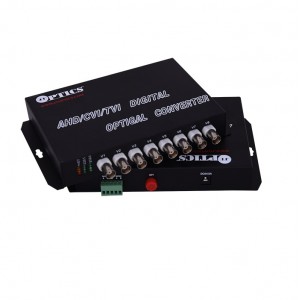

8 Channel Hd Video To Ofc Converter With Rs485 Support Ahd Hdcvi Hdtvi 1080P Smf Fc 20Km Pair
