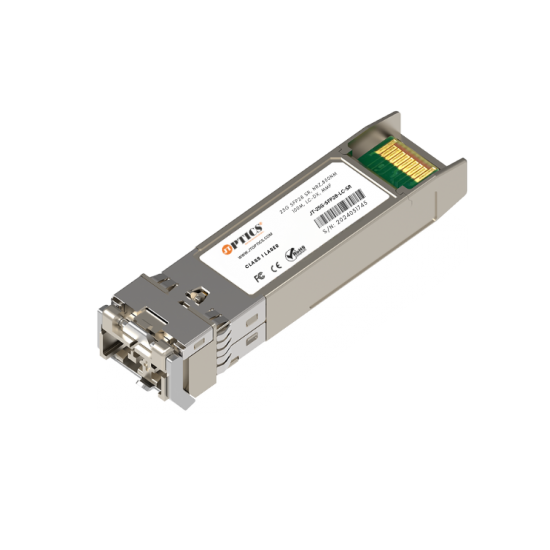

25G Multimode Optical Transceiver 25Gbase-Sr Sfp28 850Nm 100M Duplex Lc Mmf Dom Module

JT-25G-SFP28-LC-SR 10G/25G Transceivers
Secured
Advanced Security
Free Shipping
Free delivery over ₹100,000
Free Returns
Hassle free returns
25G Multimode Optical Transceiver 25Gbase-Sr Sfp28 850Nm 100M Duplex Lc Mmf Dom Module
JTOPTICS® 25GBASE SR 100m SFP28 optical transceiver, is designed a high performance module for short range data communication and interconnect applications which operate at 25.78125 Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber. This module is designed to operate over multimode fiber syst..
SPECIFICATIONS
Connector LC duplex
DDM/DOM Supported
Wavelength 850nm
Form Factor SFP28
Commercial Temperature Range 0 to 70°C (32 to 158°F)
TX Power -8.4 ~ 2.4dBm
Max Data Rate 25.78Gbps
Media MMF
Application 25GBASE Ethernet
Max Cable Distance 100m@OM4/70m@OM3
Protocols MSA Compliant, IEEE 802.3by, SFP28 MSA, SFF-8472, SFF-8432, CPRI, eCPRI
Receiver Type PIN
Receiver Sensitivity ＜-10.3dBm
Transimitter Type VCSEL 850nm
All our own products can be purchased direct online or via our sales team. E-Mail: sales(@)jtoptics.com Phone: +91-8693099309 / 9699789777
  • Stock: In Stock
  • Model: JT-25G-SFP28-LC-SR
  • MPN: JT-25G-SFP28-LC-SR
₹ 4,259.00

Available Options

Add to Cart
Buy Now Ask Question
Eligible for Free Shipping
This product ships free when your order total crosses ₹100,000.

JTOPTICS® 25GBASE SR 100m SFP28 optical transceiver, is designed a high performance module for short range data communication and interconnect applications which operate at 25.78125 Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber. This module is designed to operate over multimode fiber systems using a nominal wavelength of 850nm.Featuring low power consumption, high speed, this 25G transceiver is ideal for 25G Ethernet, telecom, and data center.



Hot pluggable SFP28 form factor

Supports 25Gbps data rate.

Maximum link length of 70m over OM3 & 100m over OM4 MMF

850nm VCSEL laser and PIN photodetector.

Internal CDR on both Transmitter and Receiver channel

Duplex LC receptacle

Single 3.3V power supply

Power dissipation < 1W

Digital diagnostics functions are available via the I2C interface.

RoHS 6 compliant

Commercial case temperature range: 0°C to 70°

SPECIFICATIONS
Connector LC duplex
DDM/DOM Supported
Wavelength 850nm
Form Factor SFP28
Commercial Temperature Range 0 to 70°C (32 to 158°F)
TX Power -8.4 ~ 2.4dBm
Max Data Rate 25.78Gbps
Media MMF
Application 25GBASE Ethernet
Max Cable Distance 100m@OM4/70m@OM3
Protocols MSA Compliant, IEEE 802.3by, SFP28 MSA, SFF-8472, SFF-8432, CPRI, eCPRI
Receiver Type PIN
Receiver Sensitivity ＜-10.3dBm
Transimitter Type VCSEL 850nm

Write a review

All our own products can be purchased direct online or via our sales team. E-Mail: sales(@)jtoptics.com Phone: +91-8693099309 / 9699789777
