SPECIFICATIONS | |
Form Type | SFP+ |
Wavelength | 850nm |
Interface | LC duplex |
Cable Type | MMF |
Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
TX Power | -6 ~ -0.5dBm |
Max Data Rate | 10.3125Gbps |
Max Cable Distance | 300m over OM3 MMF |
Optical Components | VCSEL / PIN |
DOM Support | Yes |
Protocols | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI |
Brand | JTOPTICS® |
Receiver Sensitivity | < -10dBm |
- Stock: In Stock
- Model: JT-10G-SFPP-DD-SR
- MPN: JT-10G-SFPP-DD-SR
Available Options

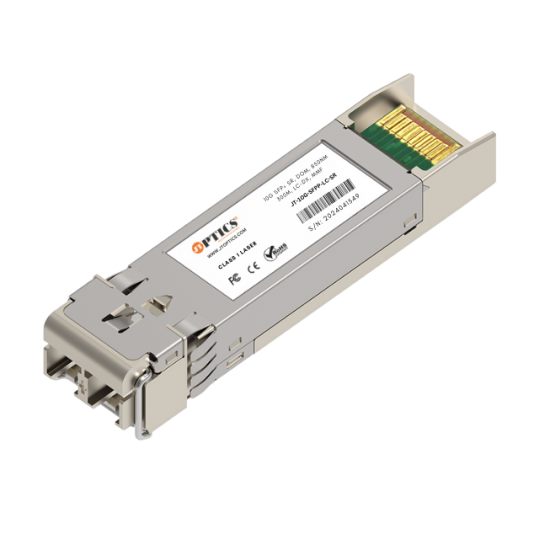

JTOPTICS® 10GBASE SR 300m SFPP optical transceiver, 10G SFPP SR(JT 10G SFPP DD SR) SFP+ transceiver supports up to 400m link lengths over OM4 MMF (300m over OM3 MMF) via an LC duplex connector. Digital diagnostics monitoring is available via a 2 wire serial interface, as specified in SFF 8472. Each SFP+ transceiver module is individually tested to be used on a series of Cisco switches, routers, servers, network interface card (NICs) etc.
Full duplex transceiver module
Hot pluggable SFP+ form factor
Compliant with SFP+ MSA standard
VCSEL transmitter and PIN receiver
Data rate up to 11.3Gbps
Compliant with CPRI specification
Maximum link length of 300m
Low power dissipation
Operating case temperature range Commercial or Industrial
Single 3.3V power supply
RoHS 6 compliant (lead free)
SPECIFICATIONS | |
Form Type | SFP+ |
Wavelength | 850nm |
Interface | LC duplex |
Cable Type | MMF |
Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
TX Power | -6 ~ -0.5dBm |
Max Data Rate | 10.3125Gbps |
Max Cable Distance | 300m over OM3 MMF |
Optical Components | VCSEL / PIN |
DOM Support | Yes |
Protocols | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI |
Brand | JTOPTICS® |
Receiver Sensitivity | < -10dBm |
