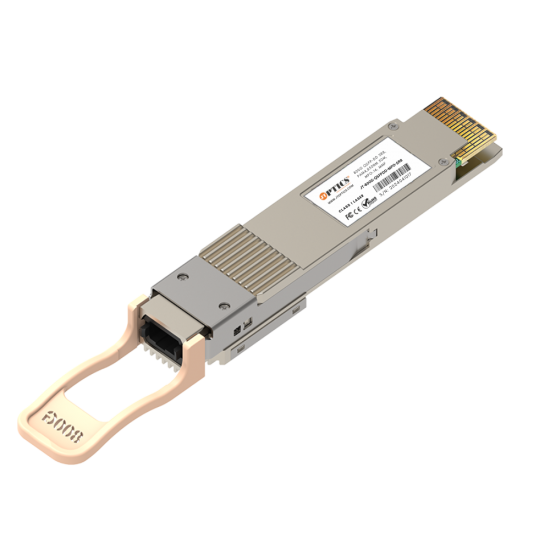

800G Sr8 Optical Transceiver 800Gbase-Sr8 Qdd-800 Pam4 850Nm 100M Dom Mtp®/Mpo-16 Mmf Module
JTOPTICS® 800GBASE SR8 100m QSFP DD optical transceiver, 800G QSFP DD SR8 (JT 800G QSFPDD SR8) is  designed to operate over multimode fiber systems using a nominal wavelength of 850nm (MMF). It is compliant with the QSFP28 MSA and IEEE 802.3cd 200GBASE SR4. It integrates eight data lanes in each dir..
SPECIFICATIONS
Connector MTP/MPO-16
DDM/DOM Supported
Wavelength 850nm
Form Factor QSFP-DD
Commercial Temperature Range 0 to 70°C (32 to 158°F)
TX Power -4.6 ~ +4 dBm (Each Lane)
Max Data Rate 800Gbps
Media MMF
Application IEEE 802.3db 2 x 400GBASE-SR4 Ethernet (PAM4)
Max Cable Distance 50m@OM4 & 70m@OM5
Modulation Format PAM4
Protocols QSFP-DD MSA Compliant
Receiver Type PIN
Receiver Sensitivity <-4.6dBm (Each Lane)
Transimitter Type VCSEL 850nm
Power Consumption <13W
All our own products can be purchased direct online or via our sales team. E-Mail: sales(@)jtoptics.com Phone: +91-8693099309 / 9699789777
  • Stock: In Stock
  • Model: JT-800G-QSFPDD-MPO-SR8
  • MPN: JT-800G-QSFPDD-MPO-SR8
₹ 152,771.00

Available Options

JTOPTICS® 800GBASE SR8 100m QSFP DD optical transceiver, 800G QSFP DD SR8 (JT 800G QSFPDD SR8) is  designed to operate over multimode fiber systems using a nominal wavelength of 850nm (MMF). It is compliant with the QSFP28 MSA and IEEE 802.3cd 200GBASE SR4. It integrates eight data lanes in each direction with 8x53.125G.  The electrical interface uses a 76 contact edge type connector. The optical interface uses a 16 fiber MTP (MPO) connector.



8 channels full duplex transceiver modules

Transmission data rate up to 106.25G per 8x53Gbps PAM4

 8x106.25Gbps PAM4 transmitter and PAM4 receiver

 8 channels 850nm VCSEL array

 8 channels PIN photo detector array

 Power consumption <13W

 Hot Pluggable QSFP DD form factor

 Max. link length 70m over OM4 and 100m over OM5 MMF

 MPO 16 connector receptacle

 Built in digital diagnostic functions

 Operating case temperature 0°C to +70°C

 3.3V power supply voltage

 RoHS compliant(lead free)

SPECIFICATIONS
Connector MTP/MPO-16
DDM/DOM Supported
Wavelength 850nm
Form Factor QSFP-DD
Commercial Temperature Range 0 to 70°C (32 to 158°F)
TX Power -4.6 ~ +4 dBm (Each Lane)
Max Data Rate 800Gbps
Media MMF
Application IEEE 802.3db 2 x 400GBASE-SR4 Ethernet (PAM4)
Max Cable Distance 50m@OM4 & 70m@OM5
Modulation Format PAM4
Protocols QSFP-DD MSA Compliant
Receiver Type PIN
Receiver Sensitivity <-4.6dBm (Each Lane)
Transimitter Type VCSEL 850nm
Power Consumption <13W
