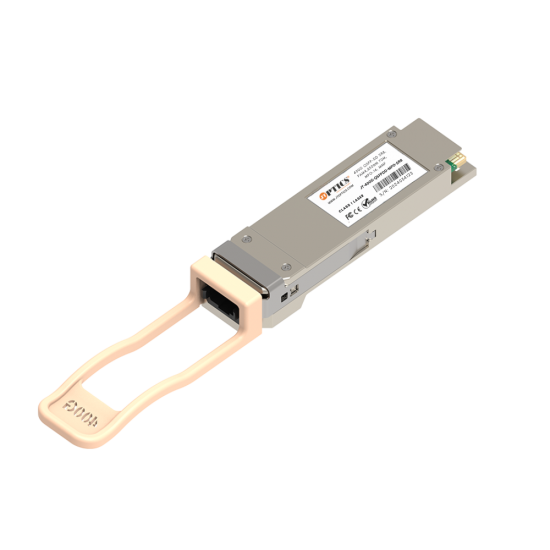

Qsfp-Dd 400G Sr8 Optical Transceiver 400Gbase-Sr8 Qsfp-Dd Pam4 850Nm 100M Dom Mtp®/Mpo-16 Apc Multimode Module

JT-400G-QSFPDD-MPO-SR8 400G Transceivers
Secured
Advanced Security
Free Shipping
Free delivery over ₹100,000
Free Returns
Hassle free returns
Qsfp-Dd 400G Sr8 Optical Transceiver 400Gbase-Sr8 Qsfp-Dd Pam4 850Nm 100M Dom Mtp®/Mpo-16 Apc Multimode Module
JTOPTICS® 400GBASE SR8 100m  is  designed to operate over multimode fiber systems using a nominal wavelength of 850nm (MMF). It is compliant with the QSFP28 MSA and IEEE 802.3bm 100GBASE SR4. It integrates eight data lanes in each direction with 8x26.5625G.  The electrical interface uses a 76 contac..
SPECIFICATIONS
Connector MTP/MPO-16
DDM/DOM Supported
Wavelength 850nm
Form Factor QSFP-DD
Commercial Temperature Range 0 to 70°C (32 to 158°F)
TX Power -6 ~ 4dBm (Each Lane)
Max Data Rate 400Gbps
Media MMF
Application 400GBASE Ethernet
Max Cable Distance 70m@OM3/100m@OM4
Modulation Format PAM4
Protocols QSFP-DD MSA Compliant
Receiver Type PIN
Receiver Sensitivity <-8.4dBm (Each Lane)
Transimitter Type VCSEL 850nm
Power Consumption <10W
All our own products can be purchased direct online or via our sales team. E-Mail: sales(@)jtoptics.com Phone: +91-8693099309 / 9699789777
  • Stock: In Stock
  • Model: JT-400G-QSFPDD-MPO-SR8
  • MPN: JT-400G-QSFPDD-SR8
₹ 21,731.00

Available Options

JTOPTICS® 400GBASE SR8 100m  is  designed to operate over multimode fiber systems using a nominal wavelength of 850nm (MMF). It is compliant with the QSFP28 MSA and IEEE 802.3bm 100GBASE SR4. It integrates eight data lanes in each direction with 8x26.5625G.  The electrical interface uses a 76 contact edge type connector. The optical interface uses a 16 fiber MTP (MPO) connector.It is compliant to IEEE 802.3bs protocol and 400GAUI 8/CEI 56G VSR PAM4 standard.



 8 channels full duplex transceiver modules

 Transmission data rate up to 53Gbps per channel

 8x53Gbps PAM4 transmitter and PAM4 receiver

 8 channels 850nm VCSEL array

 8 channels PIN photo detector array

 Internal CDR circuits on both receiver and transmitter

 Power consumption <8.5W

 Hot Pluggable QSFP DD form factor

 Max. link length of 70m on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF with FEC

 MPO 16 APC connector receptacle

 Built in digital diagnostic functions

 Operating case temperature 0°C to +70°C

 3.3V power supply voltage

 RoHS compliant(lead free)

SPECIFICATIONS
Connector MTP/MPO-16
DDM/DOM Supported
Wavelength 850nm
Form Factor QSFP-DD
Commercial Temperature Range 0 to 70°C (32 to 158°F)
TX Power -6 ~ 4dBm (Each Lane)
Max Data Rate 400Gbps
Media MMF
Application 400GBASE Ethernet
Max Cable Distance 70m@OM3/100m@OM4
Modulation Format PAM4
Protocols QSFP-DD MSA Compliant
Receiver Type PIN
Receiver Sensitivity <-8.4dBm (Each Lane)
Transimitter Type VCSEL 850nm
Power Consumption <10W
