3Kw Type-1 Portable Electric Car Charger With Sae-J1772 And Nema Plug Single Phase 16A Upto 3.7Kw

In Stock3Kw Type-1 Portable Electric Car Charger With Sae-J1772 And Nema Plug Single Phase 16A Upto 3.7Kw
SPECIFICATIONS
Approx. Diameter Cable (mm)10.0
Cable Length5 Meter
Cable Nominal Conductor Size (Sq. mm)3 Core x 2.5 Sq. mm 1 Core x 0.5 Sq. mm
Cable Outer SheathingThermoplastic polyurethane (TPU) / TPE (FR)
Contact PinCopper Alloy, Silver or Nickel Plating
Contact Resistance0.5 megohm MAX
Flame Retardant GradeUL94 V-0
IC-CPD Enclosure MaterialABS
IC-CPD LCD DisplayYES
IC-CPD Operating Voltage100-250V
IC-CPD Protection DegreeIP 66
IC-CPD Rated Current (Max)16A
IC-CPD StandardIEC 62752
Impact Insertion Force: >300N
Insulation Resistance >1000ohm (DC500V)
Mating Cycles>10000
No Of PhaseSingle
Operating Temperature -30C to +65C
Operation Voltage100-250V
Overcurrent Protection YES
Overvoltage Protection YES
Plug Protection DegreeIP55 - Mated
Plug TypeType-1 Female
Rated current16A
Sealing gasketRubber or silicon rubber
Shell materialThermoplastic
Short-circuit Protection YES
StandardSAE J1772 Type 1
Supply ConnectorEU 3-Pin
Temperature Resistance<50K
Used atVehicle Side

The JT Mobility Type-1 SAE J1772 Portable EV Charger is characterized by its compact and modular design, catering to various Electric Vehicle (EV) interfaces. Engineered with an overheating protection mechanism and boasting an IP65/NEMA Type 3 enclosure rating suitable for outdoor use, this portable EV charger ensures both safety and efficiency in charging EVs. Users are provided with ample protection against potential fire hazards, electrical shocks, and hand burns caused by charger overheating.



The Type 1 SAE J1772 Smart portable charger offers the flexibility to charge on the go, utilizing various types of sockets, including the standard socket. It is designed to effectively and correctly charge all EVs manufactured based on the Type-1 standard (US), ensuring high compatibility. These chargers are equipped with protective elements to guarantee the safety of both the vehicle and the charger. The TPU sheath cable enhances the bending life and wear resistance of the cable. Additionally, the shell effectively insulates water from the body, elevating the safety level, even in adverse weather conditions or special circumstances.



SAE J1772 Plug, Portable EV Charger, Home Charger 16A, IP65, AC ,EV Plug, 5m Length

Designed with AC charging mode for convenient charging of electric vehicles (EV) and electric vehicles supply equipment (EVSE), Charging Everywhere

Charge coupler compliant with SAE J1772

Ergonomic design and impact resistant

Mechanical Lifespan: Over 10,000 mating cycles

Overheating protection mechanism

Over Voltage, Over Current Protection

Earthing Protection

Short Circuit Protection

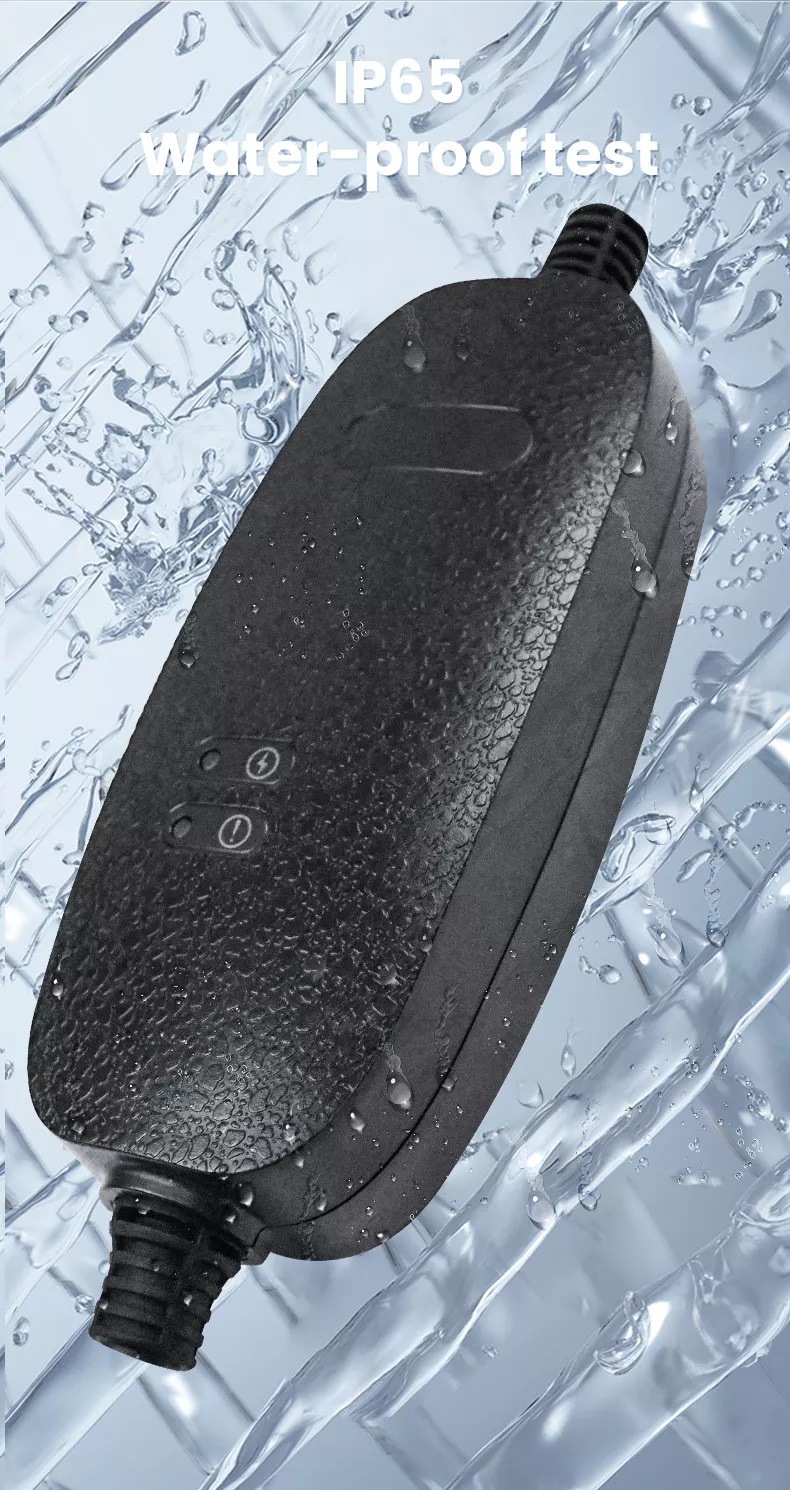

IP65 ingress protection rating.

Adopt a bright and smooth panel design with built-in LED indicators.

Easy to use.

Note:

  • Please check if the device is intact and items are accordance with the packing list when you receive the package.
  • Power-supply side input cable should be at least 3x6mm ² for 32Amp (7.3kW) and 3x2.5mm ²  for 16Amp (3.7kW)
  • Power distribution must be done by the professionals.
  • Do not submerge the control box or charging connector in water, and don’t step on, pull, fold or knot the cable.
  • Ensure charging connector, plug, cable and control box are free of any abnormalities such as scratches, rusts, cracks.
  • Don't charge if the socket is damaged, rusted, cracked, or loosely connected.
  • Ensure power plug  and   socket  are consistent  before  charging.
  • Do not place the charging cable near high temperature object when it is working.

Warranty

We provide free lifetime technical support for all our products and 1 Year warranty from original purchase date. JT Mobility Pvt. Ltd., ensure the production of portable charging line are  through strict quality inspection, we always stands behind the quality of every product we design and sell, and we are committed to your satisfaction. Warranty is not applicable on any type of physical damage or used in nonstandard condition.

Q1. What is your terms of EVSE packing?

A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.



Q2. What is your terms of payment?

A: T/T 50% as deposit, and 50% before delivery. We’ll show you the photos of the products and packages before you pay the balance.



Q3. What is your terms of delivery?

A: FOB, CFR, CIF, Ex-Work.



Q4. How about your delivery time?

A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.



Q5. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.



Q6. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers must pay the sample cost and the courier cost.



Q7. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery



Q8: How do you make our business long-term and good relationship?

A:  1. We keep good quality and competitive price to ensure our customers benefit ;

     2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.



Q9: How much warranty of the product?

A: The warranty of all our products is one year. The specific after-sale plan will be free for replacement or charging a certain maintenance cost according to the specific situations.



Q10: Do you make OEM/ODM?

A: We provide flexible customized services include OEM includes color, length, logo, packaging etc.

All our own products can be purchased direct online or via our sales team.



E-Mail: sales@jtoptics.com

Phone: +91-8693099309 / 9699789777

Overview

The JT Mobility Type-1 SAE J1772 Portable EV Charger is characterized by its compact and modular design, catering to various Electric Vehicle (EV) interfaces. Engineered with an overheating protection mechanism and boasting an IP65/NEMA Type 3 enclosure rating suitable for outdoor use, this portable EV charger ensures both safety and efficiency in charging EVs. Users are provided with ample protection against potential fire hazards, electrical shocks, and hand burns caused by charger overheating.



The Type 1 SAE J1772 Smart portable charger offers the flexibility to charge on the go, utilizing various types of sockets, including the standard socket. It is designed to effectively and correctly charge all EVs manufactured based on the Type-1 standard (US), ensuring high compatibility. These chargers are equipped with protective elements to guarantee the safety of both the vehicle and the charger. The TPU sheath cable enhances the bending life and wear resistance of the cable. Additionally, the shell effectively insulates water from the body, elevating the safety level, even in adverse weather conditions or special circumstances.



SAE J1772 Plug, Portable EV Charger, Home Charger 16A, IP65, AC ,EV Plug, 5m Length

Designed with AC charging mode for convenient charging of electric vehicles (EV) and electric vehicles supply equipment (EVSE), Charging Everywhere

Charge coupler compliant with SAE J1772

Ergonomic design and impact resistant

Mechanical Lifespan: Over 10,000 mating cycles

Overheating protection mechanism

Over Voltage, Over Current Protection

Earthing Protection

Short Circuit Protection

IP65 ingress protection rating.

Adopt a bright and smooth panel design with built-in LED indicators.

Easy to use.
