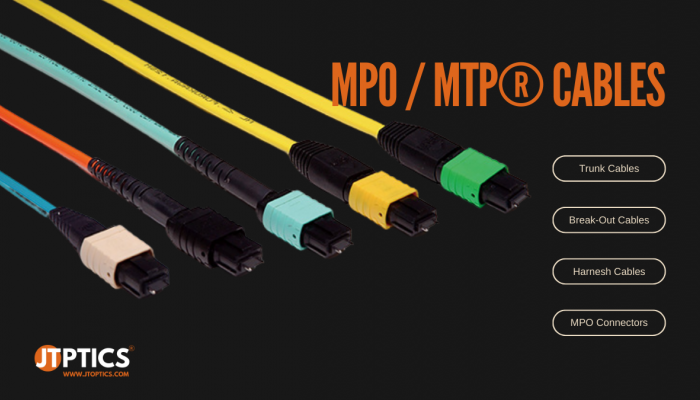

MPO / MTP Cable Assembly

MPO MTP Cable Assembly

JTOPTICS is a MPO expert who are devoted to creating value for customers by providing high-performance & economical products. The multi-mode and single mode mpo cable are used in high-density backplane and printed circuit board (PCB) applications in data and telecommunications system. The mpo connector offers up to 12 times of the density of standard connectors, providing significant space and cost savings. mpo patch cord utilizes precision molded MT ferrule, with metal guide pins for fiber alignment when mating. JTOPTICS mpo trunk cables are factory pre-terminated, 12-144cores available

JTOPTICS aims to deliver & create value by supplying the highest quality of MPO products & network solutions to customers around the globe. By utilizing state-of-the-art equipment and a team of highly trained engineers, we offer world-class premium products to meet the demand of optical connectivity and network cabling, especially high-density Fiber transmission.

JTOPTICS provides outstanding optical products, network solutions and services for your high-density 40G/100G optical network connectivity. MPO / mtp® cables assembly are generally used for 40GbE and 100GbE data center network environment and play a significant part of structured cabling and data center connectivity. We offer a wide range of MPO cable assemblies including Trunk Cables, Harness Cables and Cassette fully compliant with IEC Standards 61754-7 and TIA 604-5. Compatible with Cisco, Juniper, HP, Brocade, Huawei, Finiser, Ciena etc.


MPO Cables in Data Center & Telecom

JTOPTICS® MPO (Multi-Fiber Push-On) cables are essential for high-speed, high-density fiber connections in data centers and telecom networks. Designed for quick deployment and minimal space usage, they support parallel transmission for 40G, 100G, 200G, and 400G applications. In data centers, MPOs connect switches, servers, and storage systems, while in telecom, they streamline fiber aggregation and 5G backbone connections. Their modular, plug-and-play design ensures easy upgrades and optimized network performance.
JTOPTICS MPO / MTP Cable Assembly
JTOPTICS MPO / MTP Cable Assembly

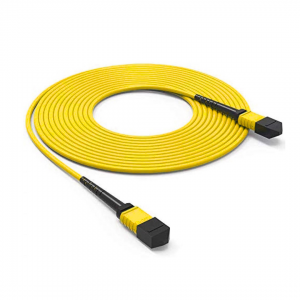

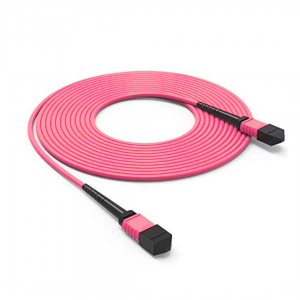

The 12 Fiber Single Mode MPO Cable 12F MPO Female to 12F MPO Female Patch Cable Low Loss OFNR (Riser) G.657A1 is a cost-effective alternative to time-consuming field termination, designed for high-density fiber patching in data centers which need space saving and reduced cable management trouble..
₹ 2,400.00

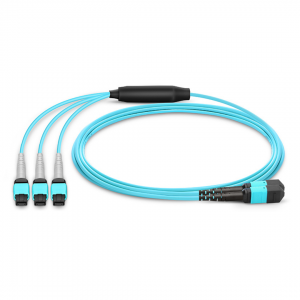

JTOPTICS® MPO/MTP pre-terminated Trunk Cables are designed for high density application which offers excellent benefits in terms on-site installation time and space saving. The trunk cable assemblies are composed of high quality LSZH jacketed fiber optic cables used in data center, telecom and backb..
₹ 5,000.00

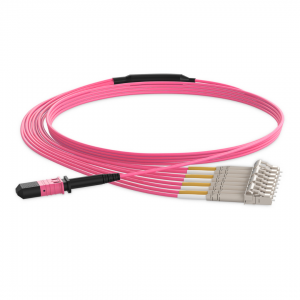

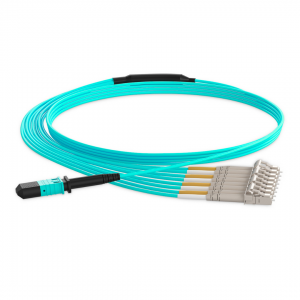

JTOPTICS MPO breakout cable allows the redistribution of various optical fibers to individual devices without additional networking equipment. JTOPTICS MPO harness cables reduce the overall cost and setup time for complex high-density networking and used in data center, telecom and backbone applicat..
₹ 3,960.00

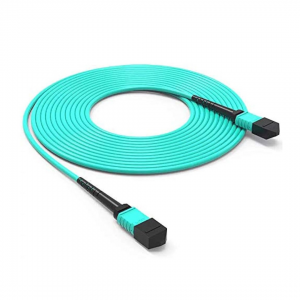

The 12 Fiber Multimode MPO Cable 12F MPO Female to 12F MPO Female OM3 Patch Cord Low Loss OFNP (Plenum) P is a cost-effective alternative to time-consuming field termination, designed for high-density fiber patching in data centers which need space saving and reduced cable management troubles. T..
₹ 2,295.00
JTOPTICS® MPO/MTP pre-terminated Trunk Cables are designed for high density application which offers excellent benefits in terms on-site installation time and space saving. The trunk cable assemblies are composed of high quality LSZH jacketed fiber optic cables used in data center, telecom and backb..
₹ 5,200.00

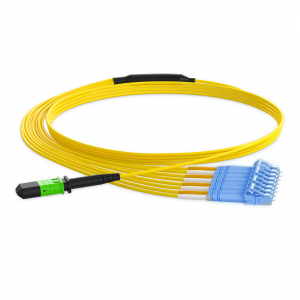

JTOPTICS MPO breakout cable allows the redistribution of various optical fibers to individual devices without additional networking equipment. JTOPTICS MPO harness cables reduce the overall cost and setup time for complex high-density networking and used in data center, telecom and backbone applicat..
₹ 4,200.00
JTOPTICS® MPO trunk patch cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. The 12 Fiber Multimode MPO Cable 12F MPO Female to 12F MPO Female OM4 Patch..
₹ 2,505.00

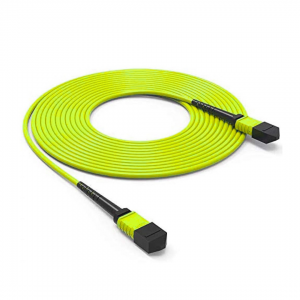

JTOPTICS® MPO trunk patch cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. The 12 Fiber OM5 MPO Cable 12F MPO Female to 12F MPO Female OM5 Patch Cord ..
₹ 6,900.00
JTOPTICS® MPO/MTP pre-terminated Trunk Cables are designed for high density application which offers excellent benefits in terms on-site installation time and space saving. The trunk cable assemblies are composed of high quality LSZH jacketed fiber optic cables used in data center, telecom and backb..
₹ 5,400.00
JTOPTICS MPO breakout cable allows the redistribution of various optical fibers to individual devices without additional networking equipment. JTOPTICS MPO harness cables reduce the overall cost and setup time for complex high-density networking and used in data center, telecom and backbone applicat..
₹ 4,416.00
JTOPTICS® MPO/MTP pre-terminated Trunk Cables are designed for high density application which offers excellent benefits in terms on-site installation time and space saving. The trunk cable assemblies are composed of high quality LSZH jacketed fiber optic cables used in data center, telecom and backb..
₹ 5,800.00

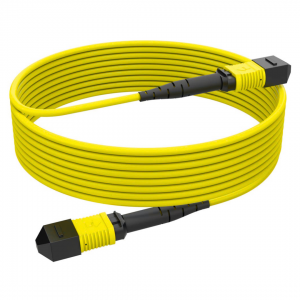

JTOPTICS® MPO pre-terminated Trunk Cables are designed for high-density applications, offering excellent benefits in terms of on-site installation time and space saving. The 24 Fiber Single Mode MPO Cable 24F MPO Female to 24F MPO Female Patch Cable Low Loss OFNR (Riser) G.657A1 trunk cable asse..
₹ 5,040.00
Showing 1 to 12 of 72 (6 Pages)

Ensuring Excellence: MPO Cable Quality Testing

At JTOPTICS® we prioritize the highest standards in MPO cable quality testing to guarantee superior performance in high-density fiber optic networks. Our comprehensive testing procedures ensure that every MPO (Multi-fiber Push-On) cable meets rigorous performance criteria for optimal reliability and signal integrity.
Insertion Loss Testing
Ensures minimal signal loss for flawless data transmission.
Return Loss Testing:
Verifies low reflection for maximum signal efficiency.
Polarity Check:
Confirms correct fiber alignment for reliable connections.
Endface Inspection:
Inspects connector endfaces for cleanliness and precision.
Mechanical Durability:
Tests cable strength to withstand environmental and physical stress.
MPO/MTP®-8 to LC Breakout Cable
MPO/MTP®-8 to LC Breakout Cable
8 Fiber MPO/MTP® to LC breakout assemblies provide connections between QSFP+ to 4 x SFP+, QSFP28 to 4 x SFP28 and QSFP-DD to 4 x QSFP-28 Transceiver Modules. 8 fiber MPO LC breakout is usually with 4 LC duplex connectors.
MPO/MTP®-12 to LC Breakout Cable
MPO/MTP®-12 to LC Breakout Cable
12 Fiber MPO/MTP® to LC breakout assemblies provide connections between QSFP+ to 4 x SFP+, QSFP28 to 4 x SFP28 and QSFP-DD to 4 x QSFP-28 Transceiver Modules. 12 fiber MPO LC breakout is usually with 6 LC duplex connectors.
MPO/MTP®-16 to LC Breakout Cable
MPO/MTP®-16 to LC Breakout Cable
16 Fiber MPO/MTP® to LC harness patch cord assemblies are used to interconnect QSFP-DD and QSFP-DD800 transceivers. QSFP-DD to 8 x SFP-56 and QSFP-DD800 to QSFP-28 with SR8 Transceiver Modules. 16 fiber MPO LC breakout is usually with 8 LC duplex connectors.
MPO/MTP®-24 to LC Breakout Cable
MPO/MTP®-24 to LC Breakout Cable
24 fiber MPO/MTP® to LC Fan out Assemblies provide connections between single CFP/CXP (100G transceiver with MPO interface) and 10 x SFP+ (10G transceivers with LC Duplex Interface). 24 fiber MPO LC breakout is usually with 12 LC duplex connectors.
Polarity Type-A
Polarity Type-A
The Left (Key Up) side is connected to the Right (Key Down) side. Fiber #1 attached to position 1 on both sides. Same applies for Fibers #2, #3, …, #12.
Polarity Type-B
Polarity Type-B
The Left (Key Up) side is connected to the Right (Key Up) side. Fiber #1 attached to position 1 on the left and position 12 on the right. This can be written as Fiber #1 1-12. Same applies for Fibers #2 2-11, #3 3-10, …, #12 12-1.
Polarity Type-C
Polarity Type-C
The Left (Key Up) side is connected to the Right (Key Down) side. Fiber #1 attached to position 1 on the left and position 2 on the right. Fiber #2 attached to position 2 on the left and position 1 on the right. This can be written as Fiber #1 1-2, Fiber #2 2-1. Same applies for Fibers #3 3-4, #4 4-3, …, #12 12-11.
8 Fiber MPO / MTP® Connectors
8 Fiber MPO / MTP® Connectors
Single-mode fiber optic cable excels at long-distance communication and featured an Yellow jacket. Single-mode cable is designed to carry a single signal source with low transmission loss over great distances. It is frequently used for communication systems due to the clarity it provides. This type of fiber optic cable has the smallest core and the thickest sheathing. OS2 fiber denotes single-mode low-water peak fibers that adhere to ITU-T G.652C and ITU-T G.652D specifications.
12 Fiber MPO / MTP® Connectors
12 Fiber MPO / MTP® Connectors
OM3 fiber features an aqua-colored jacket. Similar to OM2, it has a core size of 50 µm, but it is specifically optimized for laser-based equipment. OM3 supports 10 Gigabit Ethernet at lengths of up to 300 meters. Additionally, it can support 40 Gigabit and 100 Gigabit Ethernet up to 100 meters. However, 10 Gigabit Ethernet remains the most commonly used application for OM3 fiber.
16 Fiber MPO / MTP® Connectors
16 Fiber MPO / MTP® Connectors
OM4 fiber maintains full backward compatibility with OM3 fiber and features the same recognizable Violet/Pink jacket. Developed specifically for VSCEL laser transmission, OM4 enables 10 Gig/s link distances of up to 550m, compared to 300m with OM3. Moreover, it supports 40/100GB up to 150 meters.
24 Fiber MPO / MTP® Connectors
24 Fiber MPO / MTP® Connectors
OM5 fiber, also referred to as Wideband Multimode Fiber (WBMMF), represents the latest iteration of multimode fiber and offers backward compatibility with OM4. Sharing the same core size as OM2, OM3, and OM4, OM5 fiber distinguishes itself with a lime green jacket. It is meticulously designed and specified to accommodate a minimum of four WDM channels, each operating at a speed of at least 28Gbps per channel, across the 850-953 nm window.
