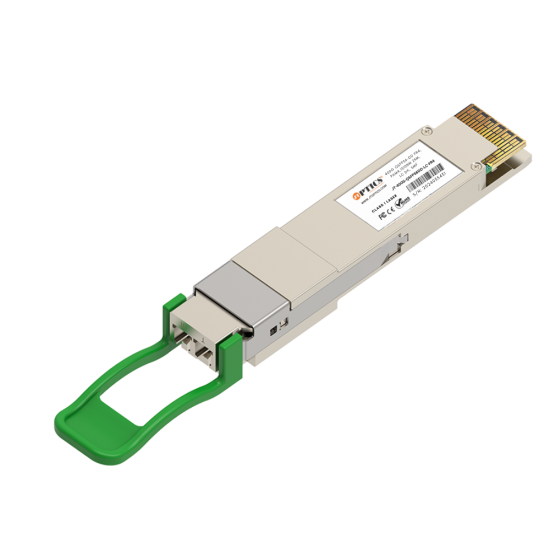

400G Qsfp56-Dd Fr4 Optical Transceiver 400Gbase-Fr4 Qsfp-Dd Pam4 1310Nm 2Km Dom Duplex Lc Smf Optical Module

JT-400G-QSFP56DD-LC-FR4 400G Transceivers
Secured
Advanced Security
Free Shipping
Free delivery over ₹100,000
Free Returns
Hassle free returns
400G Qsfp56-Dd Fr4 Optical Transceiver 400Gbase-Fr4 Qsfp-Dd Pam4 1310Nm 2Km Dom Duplex Lc Smf Optical Module
400G QSFP-DD FR4 transceiver modules are designed to support 400 Gigabit Ethernet (GbE) links over single-mode fiber (SMF) for distances up to 2 km. These transceivers leverage advanced technology to ensure reliable high-speed data transmission and are well-suited for use in data centers and enterpr..
SPECIFICATIONS
Connector LC Duplex
DDM/DOM Supported
Wavelength 1310nm
Electric Signal 8x50G
Form Factor QSFP56-DD
Commercial Temperature Range 0 to 70°C (32 to 158°F)
TX Power -3.3~3.5dBm
Max Data Rate 400Gbps
Media SMF
Application 400GBASE Ethernet
Max Cable Distance 2km
Modulation Format PAM4
Optical Signal 4x100G
Protocols QSFP56-DD MSA Compliant
Receiver Type PIN
Receiver Sensitivity <-7.3dBm
Transimitter Type EML CWDM4
Power Consumption <12W
All our own products can be purchased direct online or via our sales team. E-Mail: sales(@)jtoptics.com Phone: +91-8693099309 / 9699789777
  • Stock: In Stock
  • Model: JT-400G-QSFP56DD-LC-FR4
  • MPN: JT-400G-QSFP56DD-LLC-FR4
₹ 141,851.00

Available Options

Add to Cart
Buy Now Ask Question
Eligible for Free Shipping
This product ships free when your order total crosses ₹100,000.

400G QSFP-DD FR4 transceiver modules are designed to support 400 Gigabit Ethernet (GbE) links over single-mode fiber (SMF) for distances up to 2 km. These transceivers leverage advanced technology to ensure reliable high-speed data transmission and are well-suited for use in data centers and enterprise networks.

JTOPTICS 400G QSFP-DD FR4 transceiver modules provide a robust and efficient solution for extending 400GbE links over longer distances, ensuring reliable performance and broad compatibility.




Hot-pluggable QSFP-DD Type 2 form factor

Supports 425Gb/s aggregate bit rate

Power dissipation <12W

Commercial case temperature range of 0°C to 70°C

Single 3.3V power supply

Maximum link length of 2km on Single Mode Fiber (SMF)

Aligned with IEEE 802.3cu

4x100G PAM4 EML-based CWDM transmitter

8x50G PAM4 retimed 400GAUI-8 electrical interface

Duplex LC receptacles

I2C management interface

RoHS compliant



SPECIFICATIONS
Connector LC Duplex
DDM/DOM Supported
Wavelength 1310nm
Electric Signal 8x50G
Form Factor QSFP56-DD
Commercial Temperature Range 0 to 70°C (32 to 158°F)
TX Power -3.3~3.5dBm
Max Data Rate 400Gbps
Media SMF
Application 400GBASE Ethernet
Max Cable Distance 2km
Modulation Format PAM4
Optical Signal 4x100G
Protocols QSFP56-DD MSA Compliant
Receiver Type PIN
Receiver Sensitivity <-7.3dBm
Transimitter Type EML CWDM4
Power Consumption <12W

Write a review

All our own products can be purchased direct online or via our sales team. E-Mail: sales(@)jtoptics.com Phone: +91-8693099309 / 9699789777
E-Mail
Tags: qsfp56-dd fr4 400g optical transceiver
