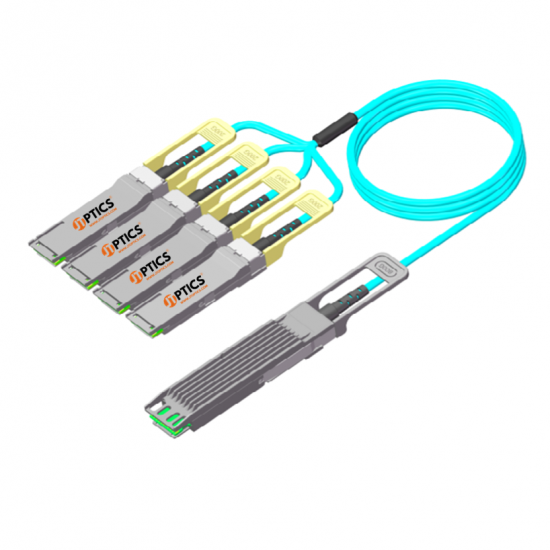

JTOPTICS® Infibend DSP-Enabled
800G Active Optical Cable (Breakout 4×200G) delivers optimized high-speed
interconnect solutions for datacenter environments, supporting distances up to
50 meters over OM4 multimode fiber. The cable features an OSFP connector on the
800G end and QSFP112 connectors on the 4×200G breakout end, ensuring
compatibility with a variety of host system architectures.
Transmission is powered by
850nm VCSEL technology with an integrated electrical driver, while the receiver
incorporates a PIN photodetector with TIA for superior optical conversion
performance. An advanced onboard DSP enables channel equalization and PAM4
retiming, supporting up to 30dB electrical lane loss on the host system to
maintain excellent signal integrity and reliable data transmission.
OSFP and QSFP112 MSA
compliant
106.25Gb/s transmission for
each direction
Host side up to 30dB of
electrical loss
DSP for equalization and
performance
Compliant with OSFP MSA, CMIS
and IEEE 802.3
Low power dissipation
Commercial Case Temperature
0°C to 70°C
Single 3.3V power supply
Built-in digital diagnostic
functionality
RoHS compliant (lead free)
Max. Power Consumption 12W
I2C interface with Integrated
Digital Diagnostic Monitoring
High-Speed Electrical
Compliant to IEEE 802.3ck
