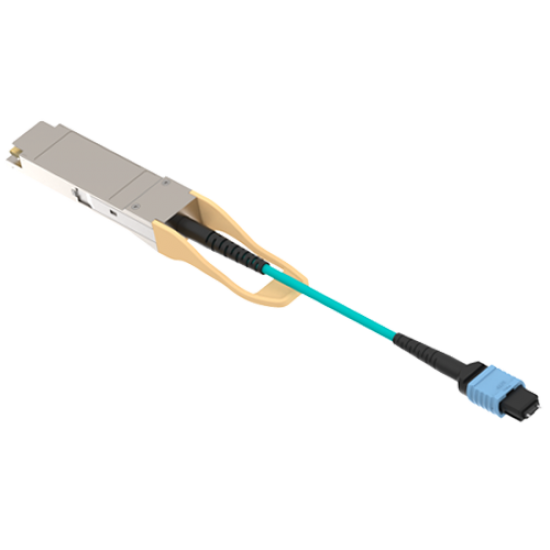

Immersion-Cooled AOC Cable 200G QSFP56 SR4 Om3 Multimode

JTOPTICS® Immersion-Cooled 200G QSFP56 SR4 Active Optical Cable (AOC) is engineered for high-density networking and high-performance computing environments that utilize liquid immersion cooling systems. Designed to deliver exceptional performance under submerged operating conditions, this AOC provides 200Gbps aggregate throughput, enabled by 4 parallel optical lanes operating at 50G PAM4 with reliable Forward Error Correction (FEC).

Optimized for immersion-cooling architectures using dielectric fluids, the AOC incorporates advanced liquid-sealed structural engineering, material compatibility enhancements, and pressure-resistant optical housing to ensure long-term operational integrity. It maintains high-speed data transmission with excellent signal integrity, thermal resilience, and minimal power consumption—making it ideal for large-scale clusters and next-generation AI infrastructures.

The integrated MPO-12 connector supports high-density optical interconnect deployment, allowing flexible rack-to-rack connectivity in submerged systems. Supporting distances up to 70 meters over OM3 and 100 meters over OM4 multimode fiber, this cable provides reliable, low-latency connectivity for modern liquid-cooled server and switch platforms.

Utilizes hot-pluggable QSFP56 form factor

4-channel full-duplex transceiver module

Speeds up to 212.5Gbps

Complies with QSFP56 MSA and IEEE 802.3cd 200GBASE-SR4 Ethernet standards

4-channel 53Gb/s PAM4 850nm VCSEL transmitters and PIN receivers

Integrated DSP chips in both receiver and transmitter channels

Maximum distance of up to 100m over multimode fiber with FEC enabled

Power consumption below 4.5W

MPO-12 connector for high-density fiber connectivity

Commercial-grade operating temperature range from 0°C to +70°C

Power supply voltage of 3.3V

Compliant with RoHS environmental standards (lead-free)
