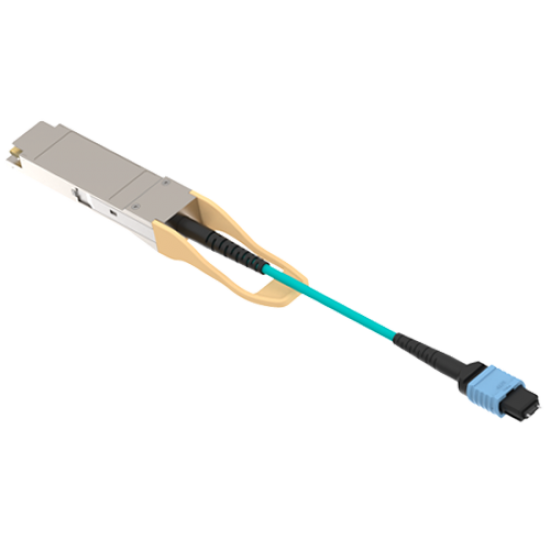

Immersion-Cooled AOC Cable 100G QSFP28 SR4 Active Optical Cable Om3 Multimode

JTOPTICS® Immersion-Cooled 100G QSFP28 SR4 Active Optical Cable (AOC) is purpose-built for high-performance, high-density optical interconnect systems within immersion-cooled data centers, enterprise computing networks, and AI/HPC clusters. Designed specifically to operate reliably in dielectric liquid immersion cooling environments, this AOC module delivers 100Gbps aggregate bandwidth using 4×25Gbps parallel lanes over multimode fiber.

This advanced AOC employs a liquid-cooling-optimized structural design, including immersion-grade sealing, pressure resistance, and material compatibility enhancements to prevent liquid ingress, ensuring long-term mechanical stability and optical performance. The integrated MPO-12 fiber interface and compact cable structure support low-latency, high-density rack interconnect applications with flexible installation in submerged environments.

Supporting transmission distances of up to 70 meters over OM3 and 100 meters over OM4, the cable is ideal for short-reach, high-speed connections between switches, servers, and accelerators within immersion-cooling systems. Engineered for superior thermal handling and minimal electromagnetic interference, it maintains stable performance and energy efficiency under high-compute workloads.

100G QSFP28 SR4 optical transceiver module and one multi-mode MPO patch cord integrated on both ends

Immersion-cooled QSFP28 SR4 optical transceiver for reliable thermal performance

Supports 100GBASE-SR4 Ethernet (IEEE 802.3bm) standard

Compatible with 25GBASE-SR (IEEE 802.3by) and InfiniBand EDR

4-lane parallel optical interface, 850nm VCSEL transmitter & PIN receiver

Each channel supports a maximum transmission rate of up to 25.78125Gbps

Compliant with QSFP28 MSA and IEEE 802.3bm 100GBASE-SR4

Transmission reach: 70m (OM3)

MPO-12/PC connector interface

Low power consumption & high signal integrity

Ideal for high-density switches, routers, servers, HPC, AI clusters Module

power consumption is less than 2W

Operating temperature ranges from 0°C to 70°C

Power supply voltage of 3.3V

Complies with RoHS environmental standards (lead-free)
