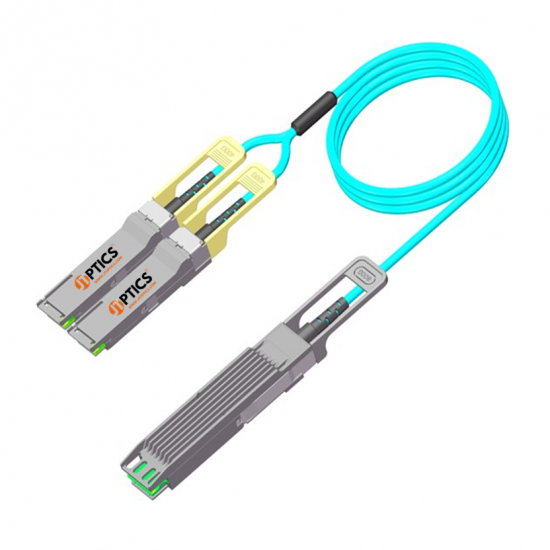

JTOPTICS® Infibend DSP-Enabled
800G Active Optical Cable (Breakout 2×400G) delivers high-performance and
optimized interconnection solutions for modern datacenters, supporting
distances up to 50 meters over OM4 multimode fiber. The cable features an OSFP
connector on the 800G end and QSFP112 connectors on the 2×400G breakout end,
ensuring compatibility with diverse host system requirements.
The transmission utilizes
850nm VCSEL technology with an integrated electrical driver, while the receiver
incorporates a PIN photodetector paired with TIA for superior optical
performance. The module includes an advanced DSP that provides channel equalization
and PAM4 retiming, supporting electrical lane losses of up to 30dB on the host
system, ensuring robust signal integrity and reliable high-speed data
transmission.
OSFP and QSFP112 MSA
compliant
106.25Gb/s transmission for
each direction
Host side up to 30dB of
electrical loss
DSP for equalization and
performance
Compliant with OSFP MSA, CMIS
and IEEE 802.3
Low power dissipation
Commercial Case Temperature
0°C to 70°C
Single 3.3V power supply
Built-in digital diagnostic
functionality
RoHS compliant (lead free)
Max. Power Consumption 12W
I2C interface with Integrated
Digital Diagnostic Monitoring
High-Speed Electrical
Compliant to IEEE 802.3ck
