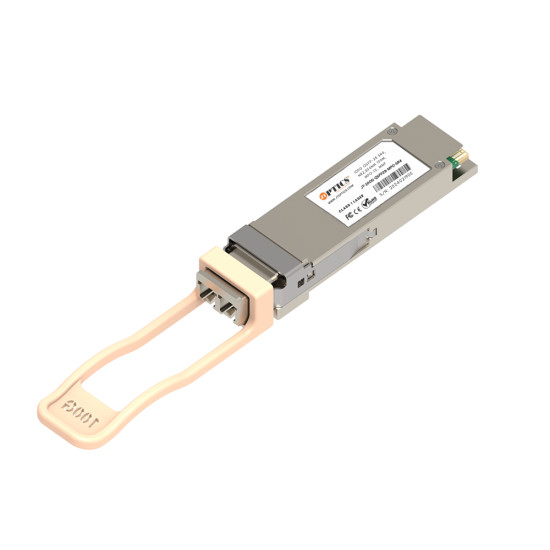

100G Srbd Optical Transceiver 100Gbase-Sr Bidi 850Nm Sr1.2 100M Dom Duplex Lc/Upc Mmf Optical Module

This transceiver is a high-performance module for short-range duplex data communication and interconnect applications. It integrates four electrical data lanes in each direction into transmission over a single LC duplex fiber optic cable. Each electrical lane operates at 25.78125 Gbps and conforms to the 100GE XLPPI interface. The transceiver internally multiplexes an XLPPI 4x25G interface into two 50Gb/s electrical channels, transmitting and receiving each optically over one simplex LC fiber using bi-directional optics. This results in an aggregate bandwidth of 100Gbps into a duplex LC cable.

Hot-pluggable QSFP28 form factor

Supports 100Gb/s aggregate bit rate

Power dissipation <4W

Commercial case temperature range of 0°C to 70°C

Single 3.3V power supply

Maximum link length of 100m on Multi Mode Fiber (MMF)

Aligned with IEEE 802.3

2 duplex channels transmitters and receivers

Integrated 850nm/910nm VCSEL and PD array

Duplex LC receptacles

I2C management interface

RoHS compliant
