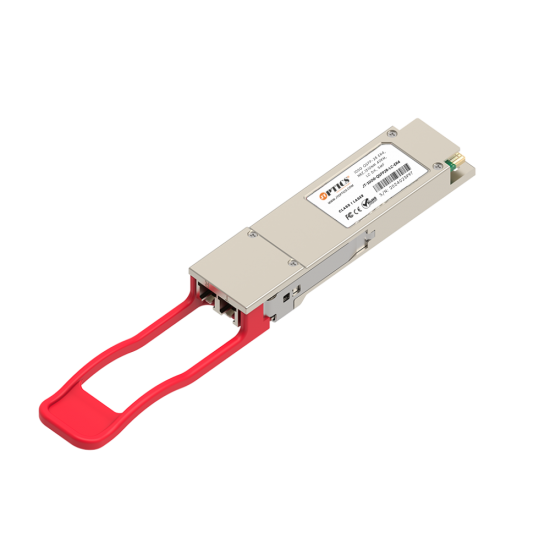

100G Qsfp28 Er4 Transceiver 100Gbase-Er4 Qsfp28 1310Nm 40Km Dom Duplex Lc Smf Optical Transceiver Module
JTOPTICS® 100Gbps transceiver module designed for optical communication applications compliant to 100GBASE-ER4. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Re..
SPECIFICATIONS
CDR TX & RX Built-in CDR
Connector LC duplex
DDM/DOM Supported
Wavelength 1310nm*
Form Factor QSFP28
Extinction Ratio 4dB
Commercial Temperature Range 0 to 70°C (32 to 158°F)
TX Power -1 ~ 6.5dBm (Each Lane)
Max Data Rate 103.125Gbps (4x 25.78Gbps)
Media SMF
Max Cable Distance 40km
Modulation Format NRZ
Power budget 18dB
Protocols 100G Ethernet, 100G Telecom Connections, Infiniband QDR and DDR Interconnects QSFP28 MSA Compliant
Receiver Type 4 x APD
Receiver Sensitivity <-18dBm (Each Lane)
Transimitter Type 4 x EML WDM
Power Consumption < 4 W
Transmit and Dispersion Penalty 2.5dB
All our own products can be purchased direct online or via our sales team. E-Mail: sales(@)jtoptics.com Phone: +91-8693099309 / 9699789777
  • Stock: In Stock
  • Model: JT-100G-QSFP28-LC-ER4
  • MPN: JT-100G-QSFP28-LC-ER4
₹ 218,291.00

Available Options

JTOPTICS® 100Gbps transceiver module designed for optical communication applications compliant to 100GBASE-ER4. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data. The high-performance cooled LAN WDM EML transmitters and high sensitivity PIN+SOA receivers provide superior performance for 100Gigabit Ethernet applications up to 40km links and compliant to optical interface with IEEE802.3ba 100GBASE-ER4 requirements



Hot-pluggable QSFP28 form factor

4 channels full-duplex transceiver module.

Max. link length of 10kM over Single mode Fiber.

4 X 25/28G LAN-WDM EML Integrated TOSA.

4 x PIN+SOA Receiver.

Internal CDR circuits (receiver and transmitter channels)

Support CDR bypass

Transmission data rate up to 26Gbps per channel.

Duplex LC Connector

6 W maximum power dissipation

Single 3.3V power supply

Comply with IEEE 802.3ba 100GBASE-ER4 Lite standard.

RoHS-6 compliant

SPECIFICATIONS
CDR TX & RX Built-in CDR
Connector LC duplex
DDM/DOM Supported
Wavelength 1310nm*
Form Factor QSFP28
Extinction Ratio 4dB
Commercial Temperature Range 0 to 70°C (32 to 158°F)
TX Power -1 ~ 6.5dBm (Each Lane)
Max Data Rate 103.125Gbps (4x 25.78Gbps)
Media SMF
Max Cable Distance 40km
Modulation Format NRZ
Power budget 18dB
Protocols 100G Ethernet, 100G Telecom Connections, Infiniband QDR and DDR Interconnects QSFP28 MSA Compliant
Receiver Type 4 x APD
Receiver Sensitivity <-18dBm (Each Lane)
Transimitter Type 4 x EML WDM
Power Consumption < 4 W
Transmit and Dispersion Penalty 2.5dB
