SPECIFICATIONS | |
CDR | TX & RX Built-in CDR |
Connector | LC duplex |
DDM/DOM | Supported |
Wavelength | 1310nm* |
Form Factor | QSFP28 |
Extinction Ratio | >3.5dB |
Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
TX Power | -6.5 ~ +2.5dBm (Each Lane) |
Max Data Rate | 103.125Gbps (4x 25.78Gbps) |
Media | SMF |
Max Cable Distance | 2km |
Modulation Format | NRZ |
Protocols | IEEE 802.3ba, IEEE 802.3bm, 100G CWDM4 MSA, QSFP28 MSA, SFF-8665, SFF-8636 |
Receiver Type | 4 x PIN |
Receiver Sensitivity | ≦-10dBm (Each Lane) |
Transimitter Type | 4 x CWDM DFB |
Power Consumption | <4W |
- Stock: In Stock
- Model: JT-100G-QSFP28-LC-CWDM-LR
- MPN: JT-100G-QSFP28-LC-CWDM-LR
Available Options
JTOPTICS®

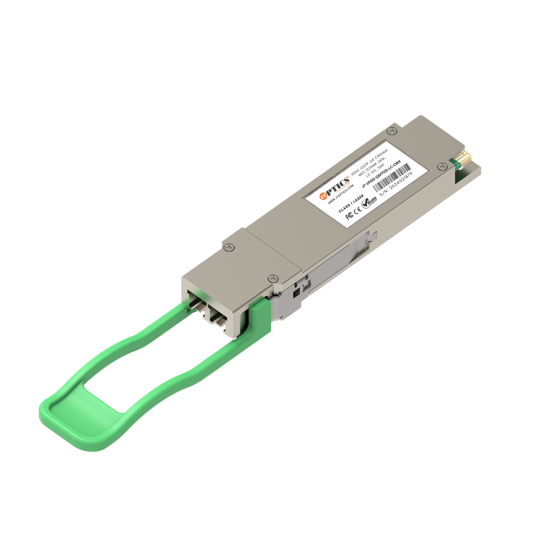

100Gb/s transceiver module designed for optical communication applications compliant
to 100G 4CWDM 10 MSA. The module converts 4 input channels of 25Gb/s electrical
data to 4 channels of CWDM optical signals and then multiplexes them into a single
channel for 100Gb/s optical transmission. Reversely on the receiver side, the module
de multiplexes a 100Gb/s optical input into 4 channels of CWDM optical signals and
then converts them to 4 output channels of electrical data. The high performance
cooled CWDM DFB transmitters and high sensitivity PIN receivers provide superior
performance for 100 Gigabit Ethernet applications up to 2km.
Hot pluggable
QSFP28 form factor
Max. link
length of 2kM over Single mode Fiber.
4 x 26Gb/s
DFB based CWDM Cooling transmitter.
4 channels
PIN ROSA.
Internal
CDR circuits (receiver and transmitter channels)
Support
CDR bypass
Transmission
data rate up to 26Gbps per channel.
Duplex
LC Connector
Comply
with IEEE 802.3ba 100GBASE LR4, IEEE 802.3bm, SFF 8665 and SFF 8636 standards.
4 W maximum
power dissipation
Single
3.3V power supply
RoHS 6
compliant
SPECIFICATIONS | |
CDR | TX & RX Built-in CDR |
Connector | LC duplex |
DDM/DOM | Supported |
Wavelength | 1310nm* |
Form Factor | QSFP28 |
Extinction Ratio | >3.5dB |
Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
TX Power | -6.5 ~ +2.5dBm (Each Lane) |
Max Data Rate | 103.125Gbps (4x 25.78Gbps) |
Media | SMF |
Max Cable Distance | 2km |
Modulation Format | NRZ |
Protocols | IEEE 802.3ba, IEEE 802.3bm, 100G CWDM4 MSA, QSFP28 MSA, SFF-8665, SFF-8636 |
Receiver Type | 4 x PIN |
Receiver Sensitivity | ≦-10dBm (Each Lane) |
Transimitter Type | 4 x CWDM DFB |
Power Consumption | <4W |
