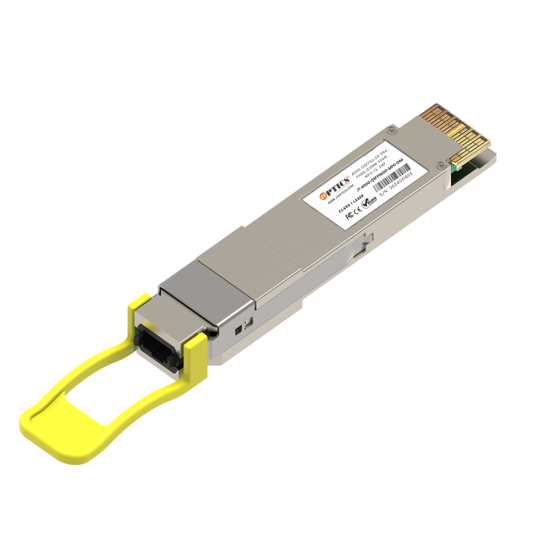

400G Qsfp56-Dd Dr4 Optical Transceiver 400G Dr4 Qsfp-Dd Pam4 1310Nm 500M Dom Mtp®/Mpo-12 Apc Smf Optical Module

JT-400G-QSFP56DD-MPO-DR4 400G Transceivers
Secured
Advanced Security
Free Shipping
Free delivery over ₹100,000
Free Returns
Hassle free returns
400G Qsfp56-Dd Dr4 Optical Transceiver 400G Dr4 Qsfp-Dd Pam4 1310Nm 500M Dom Mtp®/Mpo-12 Apc Smf Optical Module
400G QSFP-DD DR4 optical module is a hot-pluggable transceiver built using advanced silicon photonics integration technology. This module is specifically designed for 400GBASE-DR4 Ethernet links within data centers. It utilizes 100G PAM4 modulation and 4-way single-mode parallel technology, supporti..
SPECIFICATIONS
Connector MTP/MPO-12
DDM/DOM Supported
Wavelength 1310nm
Electric Signal 8x50G
Form Factor QSFP56-DD
Commercial Temperature Range 0 to 70°C (32 to 158°F)
TX Power -2.9~4.0dBm
Max Data Rate 400Gbps
Media SMF
Application 400GBASE Ethernet
Max Cable Distance 500m
Modulation Format PAM4
Optical Signal 4x100G
Protocols QSFP56-DD MSA Compliant
Receiver Type PIN
Receiver Sensitivity <-5.9dBm
Transimitter Type 1310nm EML
Power Consumption <12W
All our own products can be purchased direct online or via our sales team. E-Mail: sales(@)jtoptics.com Phone: +91-8693099309 / 9699789777
  • Stock: In Stock
  • Model: JT-400G-QSFP56DD-MPO-DR4
  • MPN: JT-400G-QSFP56DD-MPO-DR4
₹ 65,411.00

Available Options

Add to Cart
Buy Now Ask Question
Eligible for Free Shipping
This product ships free when your order total crosses ₹100,000.

400G QSFP-DD DR4 optical module is a hot-pluggable transceiver built using advanced silicon photonics integration technology. This module is specifically designed for 400GBASE-DR4 Ethernet links within data centers. It utilizes 100G PAM4 modulation and 4-way single-mode parallel technology, supporting transmission distances of up to 500 meters.




Hot-pluggable QSFP-DD Type 2 form factor

Supports 425Gb/s aggregate bit rate

Power dissipation <12W

Commercial case temperature range of 0°C to 70°C

Single 3.3V power supply

Maximum link length of 500m on Single Mode Fiber (SMF)

Aligned with IEEE 802.3bs

4x100G PAM4 EML-based 1310nm transmitter

8x50G PAM4 retimed 400GAUI-8 electrical interface

MPO-12 receptacles

I2C management interface

RoHS compliant

SPECIFICATIONS
Connector MTP/MPO-12
DDM/DOM Supported
Wavelength 1310nm
Electric Signal 8x50G
Form Factor QSFP56-DD
Commercial Temperature Range 0 to 70°C (32 to 158°F)
TX Power -2.9~4.0dBm
Max Data Rate 400Gbps
Media SMF
Application 400GBASE Ethernet
Max Cable Distance 500m
Modulation Format PAM4
Optical Signal 4x100G
Protocols QSFP56-DD MSA Compliant
Receiver Type PIN
Receiver Sensitivity <-5.9dBm
Transimitter Type 1310nm EML
Power Consumption <12W

Write a review

All our own products can be purchased direct online or via our sales team. E-Mail: sales(@)jtoptics.com Phone: +91-8693099309 / 9699789777
