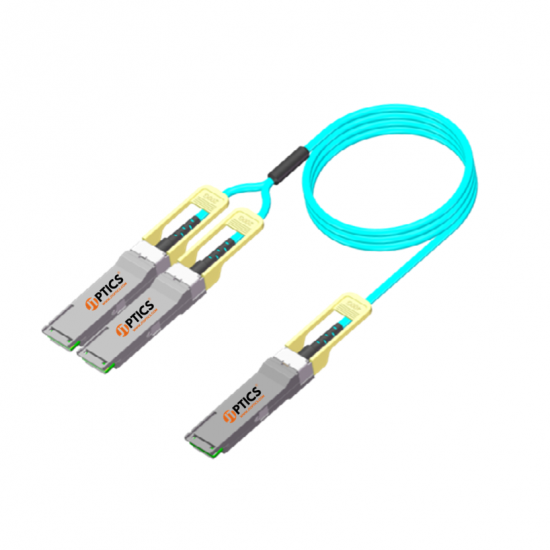

JTOPTICS® Infibend DSP-Enabled
400G Active Optical Cable (Breakout 2×200G – QSFP112) delivers high-performance
and optimized interconnection solutions for datacenter applications, supporting
distances up to 50 meters over OM4 multimode fiber. Both ends of the cable
utilize the QSFP112 form factor to ensure seamless compatibility with a wide
range of host systems.
The transmission architecture
is based on 850nm VCSEL technology with an integrated electrical driver, while
the receiver incorporates a PIN photodetector with TIA for reliable optical
performance. Featuring advanced DSP capabilities, the module provides robust
channel equalization and PAM4 retiming, supporting up to 30dB electrical lane
loss on the host side to maintain exceptional signal integrity and stable
high-speed data transmission.
QSFP112 MSA compliant
106.25Gb/s transmission for
each direction
Host side up to 30dB of
electrical loss
DSP for equalization and
performance
Compliant with InfiniBand
HDR/HDR100
MMF cable with customizable
length up to 70m (OM3) or 100m (OM4/OM5)
9W maximum power dissipation
each side
Case operating case
temperature 0 to 70°C
Single 3.3V power supply
Built-in digital diagnostic
functionality
RoHS compliant (lead free)
