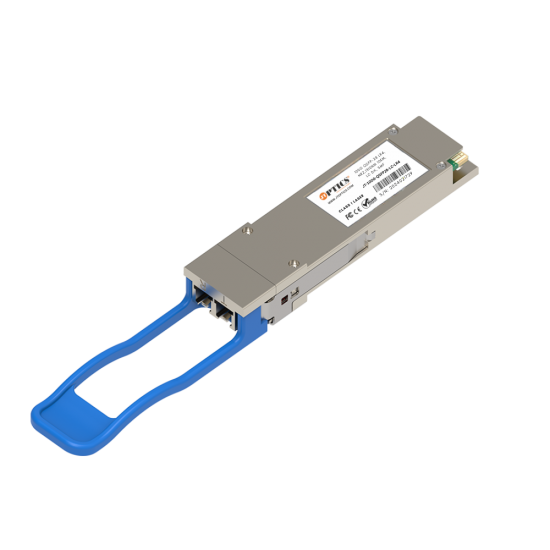

Arista QSFP-100G-LR4 100GBase-LR4 QSFP28 Transceiver 1295-1309 nm 10 km LC DDM SMF Optical Transceiver Module

QSFP-100G-LR4 100G Transceivers
Secured
Advanced Security
Free Shipping
Free delivery over ₹100,000
Free Returns
Hassle free returns
Arista QSFP-100G-LR4 100GBase-LR4 QSFP28 Transceiver 1295-1309 nm 10 km LC DDM SMF Optical Transceiver Module
The Arista QSFP-100G-LR4 is a high-performance 100GBase-LR4 QSFP28 optical transceiver, engineered for long-distance data transmission over single-mode fiber (SMF). Operating within the 1295-1309 nm wavelength range, this module supports a transmission distance of up to 10 kilometers, making it idea..
SPECIFICATIONS
CDR TX & RX Built-in CDR
Connector LC duplex
DDM/DOM Supported
Wavelength 1310nm*
Form Factor QSFP28
Extinction Ratio 4dB
Commercial Temperature Range 0 to 70°C (32 to 158°F)
TX Power -4.3~4.5dBm
Max Data Rate 103.125Gbps (4x 25.78Gbps)
Media SMF
Max Cable Distance 10km
Modulation Format NRZ
Power budget 6.3dB
Protocols IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636
Receiver Type 4 x PIN ROSA
Receiver Sensitivity <-10.6dBm
Transimitter Type 4 x LAN WDM DML TOSA
Power Consumption <4W
All our own products can be purchased direct online or via our sales team. E-Mail: sales(@)jtoptics.com Phone: +91-8693099309 / 9699789777
  • Stock: In Stock
  • Model: QSFP-100G-LR4
₹ 43,571.00
The Arista QSFP-100G-LR4 is a high-performance 100GBase-LR4 QSFP28 optical transceiver, engineered for long-distance data transmission over single-mode fiber (SMF). Operating within the 1295-1309 nm wavelength range, this module supports a transmission distance of up to 10 kilometers, making it ideal for data centers and telecommunications networks that require extended reach. It features an LC connector for reliable connectivity and incorporates Digital Diagnostic Monitoring (DDM) for real-time performance tracking and management. The QSFP-100G-LR4 is designed to deliver robust, high-speed connectivity solutions, meeting the demands of modern high-bandwidth applications in various networking environments.
SPECIFICATIONS
CDR TX & RX Built-in CDR
Connector LC duplex
DDM/DOM Supported
Wavelength 1310nm*
Form Factor QSFP28
Extinction Ratio 4dB
Commercial Temperature Range 0 to 70°C (32 to 158°F)
TX Power -4.3~4.5dBm
Max Data Rate 103.125Gbps (4x 25.78Gbps)
Media SMF
Max Cable Distance 10km
Modulation Format NRZ
Power budget 6.3dB
Protocols IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636
Receiver Type 4 x PIN ROSA
Receiver Sensitivity <-10.6dBm
Transimitter Type 4 x LAN WDM DML TOSA
Power Consumption <4W
