Adtran 1445510F1C 100GBase-SR4 QSFP28 Transceiver 850nm 100m MPO-12/UPC DDM MMF Optical Transceiver Module

1445510F1C 100G Transceivers
Secured
Advanced Security
Free Shipping
Free delivery over ₹100,000
Free Returns
Hassle free returns

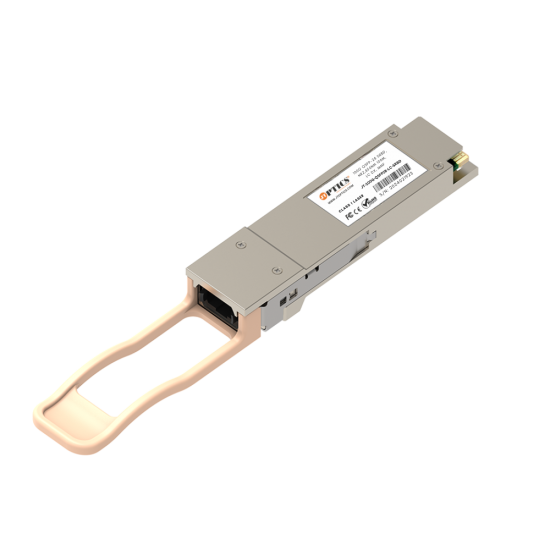

Adtran 1445510F1C 100GBase-SR4 QSFP28 Transceiver 850nm 100m MPO-12/UPC DDM MMF Optical Transceiver Module
The Adtran 1445510F1C is a high-performance 100GBase-SR4 QSFP28 optical transceiver designed for efficient data transmission over multimode fiber (MMF). Operating at an 850nm wavelength, this transceiver module supports a reliable reach of up to 100 meters, making it ideal for short-range applicatio..
SPECIFICATIONS
CDR TX & RX Built-in CDR
Connector MTP/MPO-12
DDM/DOM Supported
Wavelength 850nm
Form Factor QSFP28
Extinction Ratio 2dB
Commercial Temperature Range 0 to 70°C (32 to 158°F)
TX Power -8.4~2.4dBm
Max Data Rate 103.125Gbps (4x 25.78Gbps)
Media MMF
Max Cable Distance 70m@OM3/100m@OM4
Modulation Format NRZ
Power budget 1.9dB
Protocols QSFP28 MSA Compliant
Receiver Type PIN
Receiver Sensitivity <-10.3dBm
Transimitter Type VCSEL 850nm
Power Consumption 3.5W
Transmit and Dispersion Penalty 5dB
All our own products can be purchased direct online or via our sales team. E-Mail: sales(@)jtoptics.com Phone: +91-8693099309 / 9699789777
  • Stock: In Stock
  • Model: 1445510F1C
₹ 10,811.00
The Adtran 1445510F1C is a high-performance 100GBase-SR4 QSFP28 optical transceiver designed for efficient data transmission over multimode fiber (MMF). Operating at an 850nm wavelength, this transceiver module supports a reliable reach of up to 100 meters, making it ideal for short-range applications in data centers and high-performance computing environments. It features MPO-12/UPC connectors, ensuring secure and effective connectivity. Additionally, the module incorporates Digital Diagnostic Monitoring (DDM) for real-time performance tracking, enabling network administrators to monitor link health and optimize network efficiency. The Adtran 1445510F1C is engineered to provide scalable and reliable connectivity solutions for modern high-bandwidth applications.
SPECIFICATIONS
CDR TX & RX Built-in CDR
Connector MTP/MPO-12
DDM/DOM Supported
Wavelength 850nm
Form Factor QSFP28
Extinction Ratio 2dB
Commercial Temperature Range 0 to 70°C (32 to 158°F)
TX Power -8.4~2.4dBm
Max Data Rate 103.125Gbps (4x 25.78Gbps)
Media MMF
Max Cable Distance 70m@OM3/100m@OM4
Modulation Format NRZ
Power budget 1.9dB
Protocols QSFP28 MSA Compliant
Receiver Type PIN
Receiver Sensitivity <-10.3dBm
Transimitter Type VCSEL 850nm
Power Consumption 3.5W
Transmit and Dispersion Penalty 5dB
