48 Fiber Multimode Om5 Breakout Mpo Trunk Cable 4 x 12F Mpo (F) to 4 x 12F Mpo (F) Om5 Distribution Cable

JTMPM5412MOSFMOSFXX HD Pre-Terminated Trunk Cable
Secured
Advanced Security
Free Shipping
Free delivery over ₹100,000
Free Returns
Hassle free returns

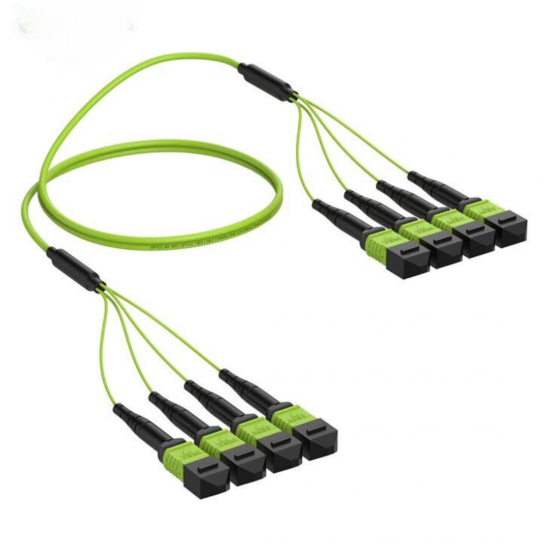

48 Fiber Multimode Om5 Breakout Mpo Trunk Cable 4 x 12F Mpo (F) to 4 x 12F Mpo (F) Om5 Distribution Cable
JTOPTICS® 48 core MPO/MTP Trunk Fiber Optic Cable ribbon and trunk mulitcore cable assemblies facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environment, reducing network installation or reconfiguration time and cost. MTP/MPO are used to interconnec..
SPECIFICATIONS
Connector A 4 x MPO Female (12 Fiber)
Cable Jacket Plenum (OFNP)
Insertion Loss 0.7dB Max
Polish UPC to UPC
Wavelength 850/1300nm
Return Loss ≥30dB
Jacket OD 6 mm
Installation Tensile Load 100 N
Operating Temp Range -10°C to +70°C
Fiber Mode OM5 50/125μm
Connector Make JTOPTICS / NISSIN
Connector B 4 x MPO Female (12 Fiber)
Minimum Bend Radius 30mm
Storage Temp Range -40°C to +85°C
Long-Term Tensile Load 50 N
Connector Quality Standard
All our own products can be purchased direct online or via our sales team. E-Mail: sales(@)jtoptics.com Phone: +91-8693099309 / 9699789777

Low Insertion Loss & High Performance

Comply with IEC 61754-7, TIA/EIA 604-5

Compliant for MPO/MTP® interfaces

Individually Packed with Test Report

100% 3D Factory Tested

High performance in IL & RL

Complied to ANSI/TIA-568-C.3, IEEE 802.3ba and adheres to ANSI/TIA-942

Bend Insensitive Fiber with Min. Bend Radius

  • Stock: In Stock
  • Model: JTMPM5412MOSFMOSFXX
  • MPN: JTMPM5412MOSFMOSFXX
₹ 9,600.00

Available Options

JTOPTICS® 48 core MPO/MTP Trunk Fiber Optic Cable ribbon and trunk mulitcore cable assemblies facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environment, reducing network installation or reconfiguration time and cost. MTP/MPO are used to interconnect cassettes, panels, or fan outs

SPECIFICATIONS
Connector A 4 x MPO Female (12 Fiber)
Cable Jacket Plenum (OFNP)
Insertion Loss 0.7dB Max
Polish UPC to UPC
Wavelength 850/1300nm
Return Loss ≥30dB
Jacket OD 6 mm
Installation Tensile Load 100 N
Operating Temp Range -10°C to +70°C
Fiber Mode OM5 50/125μm
Connector Make JTOPTICS / NISSIN
Connector B 4 x MPO Female (12 Fiber)
Minimum Bend Radius 30mm
Storage Temp Range -40°C to +85°C
Long-Term Tensile Load 50 N
Connector Quality Standard

Write a review

All our own products can be purchased direct online or via our sales team. E-Mail: sales(@)jtoptics.com Phone: +91-8693099309 / 9699789777
