Mpo Trunk Cables

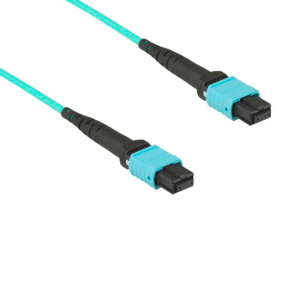

Low-Loss MPO-MPO Trunk Patch Cable
MPO trunk patch cable, a cost-effective
alternative to time-consuming field termination, is designed for high-density
fiber patching in data centers which need space saving and reduce cable
management troubles. MPO trunk type is for 40G QSFP+ SR4/CSR4, 100G QSFP28
SR4/PSM4, 400G SR8, SR4/LR4, optics direct connection and high-density data
center applications.
MPO cable is designed for high-density
application which offers excellent benefits in terms of installation time and
space saving. The cable assemblies are used in data centre, telecom, and
backbone application for 40-100G connectivity.
Optimizing Network Performance with MPO Trunk Cables
JTOPTICS® MPO trunk cables are pre-terminated, high-fiber-count cables that serve as the backbone for high-density, high-speed network infrastructures. In data centers, these cables simplify the deployment of 40G, 100G, 200G, and 400G Ethernet by enabling parallel optical connections between switches, patch panels, and servers. Their compact design reduces cable congestion and improves airflow.
The JTOPTICS® MPO trunk patch
cable offers a cost-effective alternative to the time-consuming process of
field termination. Designed for high-density fiber patching in data centers, it
aids in space saving and simplifies cable management. This MPO trunk type is
compatible with 40G
QSFP+ SR4/CSR..
₹ 3,900.00
The JTOPTICS® MPO trunk patch
cable, a cost-effective alternative to time-consuming field termination, is
designed for high-density fiber patching in data centers which need
space-saving solutions and reduced cable management troubles. The MPO trunk
type is suitable for 40G QSFP+ SR4/CSR4, 100G ..
₹ 4,050.00
The JTOPTICS® MPO trunk patch
cable, a cost-effective alternative to time-consuming field termination, is
designed for high-density fiber patching in data centers which need
space-saving solutions and reduced cable management troubles. The MPO trunk
type is suitable for 40G QSFP+ SR4/CSR4, 100G ..
₹ 4,200.00
The JTOPTICS® MPO trunk patch
cable, a cost-effective alternative to time-consuming field termination, is
designed for high-density fiber patching in data centers which need
space-saving solutions and reduced cable management troubles. The MPO trunk
type is suitable for 40G QSFP+ SR4/CSR4, 100G ..
₹ 5,200.00
The JTOPTICS® MTP® trunk patch cable, a cost-effective alternative to
time-consuming field termination, is designed for high-density fiber patching
in data centers which need space-saving solutions and reduced cable management
troubles. The MTP® trunk type is suitable for 40G QSFP+ SR4/CSR4, 100G..
₹ 4,290.00
The JTOPTICS® MTP® trunk patch
cable, a cost-effective alternative to time-consuming field termination, is
designed for high-density fiber patching in data centers which need
space-saving solutions and reduced cable management troubles. The MTP® trunk
type is suitable for 40G QSFP+ SR4/CSR4, 100..
₹ 4,185.00
The JTOPTICS® MTP® trunk patch
cable, a cost-effective alternative to time-consuming field termination, is
designed for high-density fiber patching in data centers which need
space-saving solutions and reduced cable management troubles. The MTP® trunk
type is suitable for 40G QSFP+ SR4/CSR4, 100..
₹ 4,485.00
JTOPTICS MTP® pre-terminated Trunk Cables are designed for high density application which offers excellent benefits in terms on-site installation time and space saving. The trunk cable assemblies are composed of high quality LSZH jacketed fiber optic cables used in data center, telecom and backbone ..
₹ 8,580.00
JTOPTICS MTP® pre-terminated Trunk Cables are designed for high density application which offers excellent benefits in terms on-site installation time and space saving. The trunk cable assemblies are coMTP®sed of high quality LSZH jacketed fiber optic cables used in data center, telecom and backbone..
₹ 8,385.00
JTOPTICS MTP® pre-terminated Trunk Cables are designed for high density application which offers excellent benefits in terms on-site installation time and space saving. The trunk cable assemblies are coMTP®sed of high quality LSZH jacketed fiber optic cables used in data center, telecom and backbone..
₹ 8,970.00

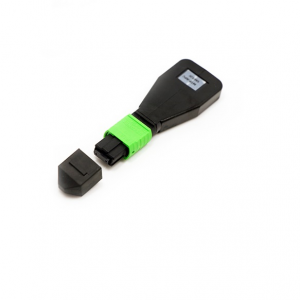

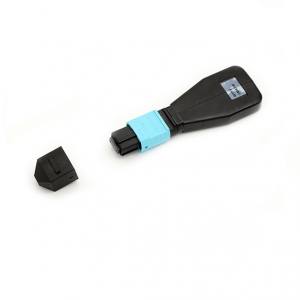

MTP® Loopback Assemblies are designed for testing of MTP® parallel links and for device burn-in. By creating a loop of signal from transmitter to receiver within one MTP® plug it forms optical link which allows testing of optical network segment by segment. Our MTP® loopback cables are factory pre-t..
₹ 4,500.00
MTP® Loopback Assemblies are designed for testing of MTP® parallel links and for device burn-in. By creating a loop of signal from transmitter to receiver within one MTP® plug it forms optical link which allows testing of optical network segment by segment. Our MTP® loopback cables are factory pre-t..
₹ 4,800.00
Ensuring Excellence: MPO Cable Quality Testing
At JTOPTICS® we prioritize the highest standards in MPO cable quality testing to guarantee superior performance in high-density fiber optic networks. Our comprehensive testing procedures ensure that every MPO (Multi-fiber Push-On) cable meets rigorous performance criteria for optimal reliability and signal integrity.
Insertion Loss Testing
Ensures minimal signal loss for flawless data transmission.
Return Loss Testing:
Verifies low reflection for maximum signal efficiency.
Polarity Check:
Confirms correct fiber alignment for reliable connections.
Endface Inspection:
Inspects connector endfaces for cleanliness and precision.
Mechanical Durability:
Tests cable strength to withstand environmental and physical stress.
Insertion Loss Testing
Ensures minimal signal loss for flawless data transmission.
Return Loss Testing:
Verifies low reflection for maximum signal efficiency.
Polarity Check:
Confirms correct fiber alignment for reliable connections.
Endface Inspection:
Inspects connector endfaces for cleanliness and precision.
Mechanical Durability:
Tests cable strength to withstand environmental and physical stress.
Polarity Type-A
The Left (Key Up) side is connected to the Right (Key Down) side. Fiber #1 attached to position 1 on both sides. Same applies for Fibers #2, #3, …, #12.
Polarity Type-B
The Left (Key Up) side is connected to the Right (Key Up) side. Fiber #1 attached to position 1 on the left and position 12 on the right. This can be written as Fiber #1 1-12. Same applies for Fibers #2 2-11, #3 3-10, …, #12 12-1.
Polarity Type-C
The Left (Key Up) side is connected to the Right (Key Down) side. Fiber #1 attached to position 1 on the left and position 2 on the right. Fiber #2 attached to position 2 on the left and position 1 on the right. This can be written as Fiber #1 1-2, Fiber #2 2-1. Same applies for Fibers #3 3-4, #4 4-3, …, #12 12-11.
