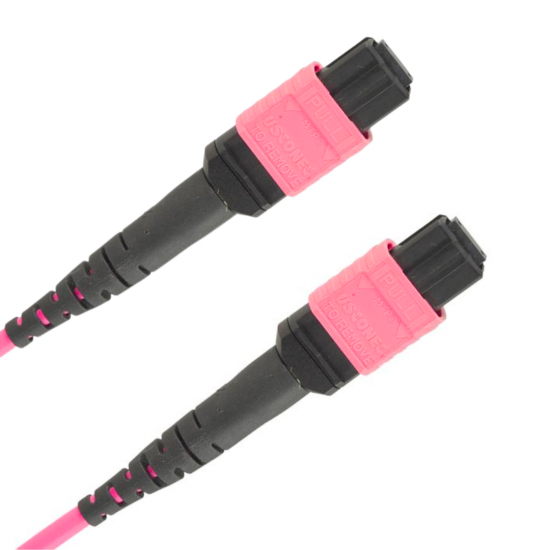

24 Fiber Om4 Mtp® Trunk Cable 24F Mtp®-F To 24F Mtp®-F Sm Patch Cord Low Loss Ofnp Multimode Om4 Cable Polarity A

JTMPMO424MPSFMPSFXX Mpo Trunk Cables
Secured
Advanced Security
Free Shipping
Free delivery over ₹100,000
Free Returns
Hassle free returns
24 Fiber Om4 Mtp® Trunk Cable 24F Mtp®-F To 24F Mtp®-F Sm Patch Cord Low Loss Ofnp Multimode Om4 Cable Polarity A
JTOPTICS MTP® pre-terminated Trunk Cables are designed for high density application which offers excellent benefits in terms on-site installation time and space saving. The trunk cable assemblies are coMTP®sed of high quality LSZH jacketed fiber optic cables used in data center, telecom and backbone..
SPECIFICATIONS
Connector A MTP Female (24 Fiber)
Cable Jacket Plenum (OFNP)
Insertion Loss 0.7dB Max
Polish UPC to UPC
Wavelength 850/1300nm
Return Loss ≥30dB
Jacket OD 3.5mm
Installation Tensile Load 100 N
Operating Temp Range -10°C to +70°C
Fiber Mode OM4 50/125μm
Connector Make US Connect
Connector B MTP Female (24 Fiber)
Minimum Bend Radius 30mm
Storage Temp Range -40°C to +85°C
Long-Term Tensile Load 50 N
Connector Quality Standard
All our own products can be purchased direct online or via our sales team. E-Mail: sales(@)jtoptics.com Phone: +91-8693099309 / 9699789777

Low Insertion Loss & High Performance

Comply with IEC 61754-7, TIA/EIA 604-5

Compliant for MPO/MTP® interfaces

Individually Packed with Test Report

100% 3D Factory Tested

High performance in IL & RL

Complied to ANSI/TIA-568-C.3, IEEE 802.3ba and adheres to ANSI/TIA-942

Bend Insensitive Fiber with Min. Bend Radius

  • Stock: In Stock
  • Model: JTMPMO424MPSFMPSFXX
  • MPN: JTMPMO424MPSFMPSFXX
₹ 8,970.00

Available Options

Add to Cart
Buy Now Ask Question
Eligible for Free Shipping
This product ships free when your order total crosses ₹100,000.
JTOPTICS MTP® pre-terminated Trunk Cables are designed for high density application which offers excellent benefits in terms on-site installation time and space saving. The trunk cable assemblies are coMTP®sed of high quality LSZH jacketed fiber optic cables used in data center, telecom and backbone application for 100G, 400G & 800G connectivity. MTP® cables are factory pre-terminated, tested and packed along with test reports. They are built with high-quality components of Japanese MT ferrules and JTOPTICS brand connector kits. The trunk cable assemblies are composed of high quality LSZH/OFNP jacketed fiber optic cables
SPECIFICATIONS
Connector A MTP Female (24 Fiber)
Cable Jacket Plenum (OFNP)
Insertion Loss 0.7dB Max
Polish UPC to UPC
Wavelength 850/1300nm
Return Loss ≥30dB
Jacket OD 3.5mm
Installation Tensile Load 100 N
Operating Temp Range -10°C to +70°C
Fiber Mode OM4 50/125μm
Connector Make US Connect
Connector B MTP Female (24 Fiber)
Minimum Bend Radius 30mm
Storage Temp Range -40°C to +85°C
Long-Term Tensile Load 50 N
Connector Quality Standard
