24 Fiber Single Mode Mpo Cable 24F Mpo Female To 24F Mpo Female Patch Cable Low Loss Ofnr (Riser) G.657A1 Polarity A

JTMPS224MOSFMOSFXX Mpo Trunk Cables
Secured
Advanced Security
Free Shipping
Free delivery over ₹100,000
Free Returns
Hassle free returns

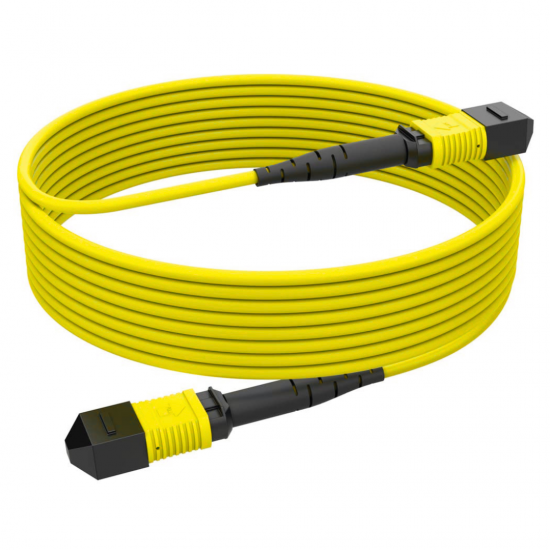

24 Fiber Single Mode Mpo Cable 24F Mpo Female To 24F Mpo Female Patch Cable Low Loss Ofnr (Riser) G.657A1 Polarity A
JTOPTICS® MPO pre-terminated Trunk Cables are designed for high-density applications, offering excellent benefits in terms of on-site installation time and space saving. The 24 Fiber Single Mode MPO Cable 24F MPO Female to 24F MPO Female Patch Cable Low Loss OFNR (Riser) G.657A1 trunk cable asse..
SPECIFICATIONS
Connector A MPO Female (24 Fiber)
Cable Jacket OFNR (Riser)
Insertion Loss 0.35dB Max
Polish APC to APC
Wavelength 1310/1550nm
Return Loss ≥60dB
Jacket OD 3.5mm
Installation Tensile Load 100 N
Operating Temp Range -10°C to +70°C
Fiber Mode OS2 9/125μm SM
Connector Make JTOPTICS / NISSIN
Connector B MPO Female (24 Fiber)
Minimum Bend Radius 30mm
Storage Temp Range -40°C to +85°C
Long-Term Tensile Load 50 N
Connector Quality Standard
All our own products can be purchased direct online or via our sales team. E-Mail: sales(@)jtoptics.com Phone: +91-8693099309 / 9699789777

Low Insertion Loss & High Performance

Comply with IEC 61754-7, TIA/EIA 604-5

Compliant for MPO/MTP® interfaces

Individually Packed with Test Report

100% 3D Factory Tested

High performance in IL & RL

Complied to ANSI/TIA-568-C.3, IEEE 802.3ba and adheres to ANSI/TIA-942

Bend Insensitive Fiber with Min. Bend Radius

  • Stock: In Stock
  • Model: JTMPS224MOSFMOSFXX
  • MPN: JTMPS224MOSFMOSFXX
₹ 5,040.00

Available Options

JTOPTICS® MPO pre-terminated Trunk Cables are designed for high-density applications, offering excellent benefits in terms of on-site installation time and space saving. The 24 Fiber Single Mode MPO Cable 24F MPO Female to 24F MPO Female Patch Cable Low Loss OFNR (Riser) G.657A1 trunk cable assemblies are composed of high-quality LSZH jacketed fiber optic cables used in data centers, telecom, and backbone applications for 100G, 400G, and 800G connectivity. MPO cables are factory pre-terminated, tested, and packed along with test reports. They are built with high-quality components of Japanese MT ferrules and JTOPTICS® brand connector kits. For more details, refer to the part code number JTMPS224MOSFMOSFXX.

SPECIFICATIONS
Connector A MPO Female (24 Fiber)
Cable Jacket OFNR (Riser)
Insertion Loss 0.35dB Max
Polish APC to APC
Wavelength 1310/1550nm
Return Loss ≥60dB
Jacket OD 3.5mm
Installation Tensile Load 100 N
Operating Temp Range -10°C to +70°C
Fiber Mode OS2 9/125μm SM
Connector Make JTOPTICS / NISSIN
Connector B MPO Female (24 Fiber)
Minimum Bend Radius 30mm
Storage Temp Range -40°C to +85°C
Long-Term Tensile Load 50 N
Connector Quality Standard

Write a review

All our own products can be purchased direct online or via our sales team. E-Mail: sales(@)jtoptics.com Phone: +91-8693099309 / 9699789777
