| SPECIFICATIONS | |
| Connector A | MPO Female (24 Fiber) |
| Cable Jacket | Plenum (OFNP) |
| Insertion Loss | 0.7dB Max |
| Polish | UPC to UPC |
| Wavelength | 850/1300nm |
| Return Loss | ≥30dB |
| Jacket OD | 3.5mm |
| Installation Tensile Load | 100 N |
| Operating Temp Range | -10°C to +70°C |
| Fiber Mode | OM5 50/125μm |
| Connector Make | JTOPTICS / NISSIN |
| Connector B | MPO Female (24 Fiber) |
| Minimum Bend Radius | 30mm |
| Storage Temp Range | -40°C to +85°C |
| Long-Term Tensile Load | 50 N |
| Connector Quality | Standard |
Low Insertion Loss & High
Performance
Comply with IEC 61754-7, TIA/EIA 604-5
Compliant for MPO/MTP® interfaces
Individually Packed with Test Report
100% 3D Factory Tested
High performance in IL & RL
Complied to ANSI/TIA-568-C.3, IEEE
802.3ba and adheres to ANSI/TIA-942
Bend Insensitive Fiber with Min. Bend
Radius
- Stock: In Stock
- Model: JTMPM524MOSFMOSFXX
- MPN: JTMPM524MOSFMOSFXX
Available Options

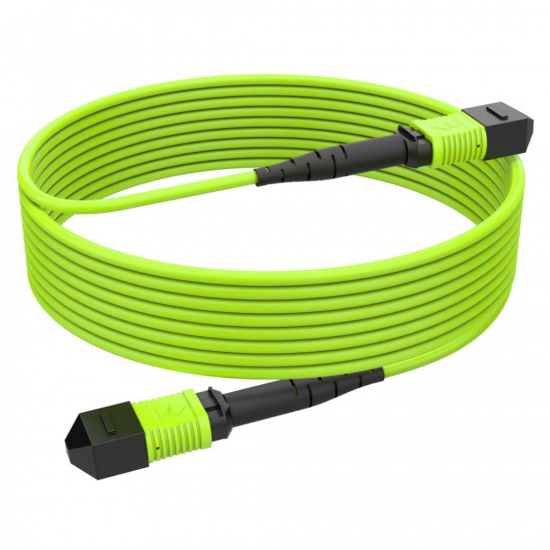

JTOPTICS® MPO pre-terminated
Trunk Cables are designed for high-density applications, offering excellent
benefits in terms of on-site installation time and space saving. The 24 Fiber Multimode MPO Cable 24F
MPO Female to 24F MPO Female OM5 Patch Cord Low Loss OFNP (Plenum) P trunk
cable assemblies are composed of high-quality LSZH jacketed fiber optic cables
used in data centers, telecom, and backbone applications for 100G, 400G, and
800G connectivity. MPO cables are factory pre-terminated, tested, and packed
along with test reports. They are built with high-quality components of
Japanese MT ferrules and JTOPTICS® brand connector kits. For more details,
refer to the part code number JTMPM524MOSFMOSFXX.
| SPECIFICATIONS | |
| Connector A | MPO Female (24 Fiber) |
| Cable Jacket | Plenum (OFNP) |
| Insertion Loss | 0.7dB Max |
| Polish | UPC to UPC |
| Wavelength | 850/1300nm |
| Return Loss | ≥30dB |
| Jacket OD | 3.5mm |
| Installation Tensile Load | 100 N |
| Operating Temp Range | -10°C to +70°C |
| Fiber Mode | OM5 50/125μm |
| Connector Make | JTOPTICS / NISSIN |
| Connector B | MPO Female (24 Fiber) |
| Minimum Bend Radius | 30mm |
| Storage Temp Range | -40°C to +85°C |
| Long-Term Tensile Load | 50 N |
| Connector Quality | Standard |
