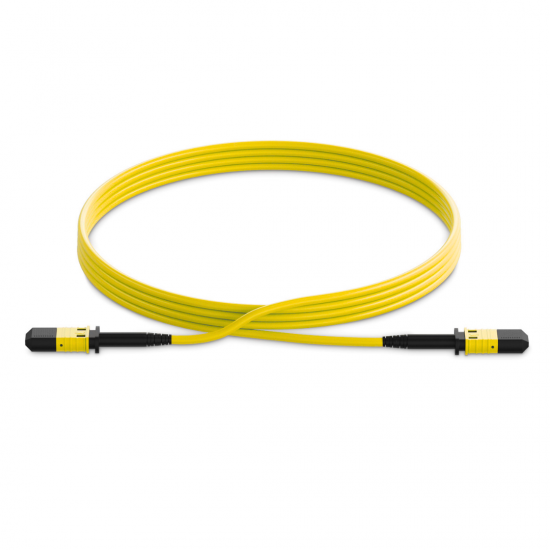

16 Fiber Single mode Mpo Cable 16F Mpo Female To 16F Mpo Female sm Patch Cord Low Loss Ofnr Polarity B

JTMPS216OMOSFMOSFXX Mpo Trunk Cables
Secured
Advanced Security
Free Shipping
Free delivery over ₹100,000
Free Returns
Hassle free returns
16 Fiber Single mode Mpo Cable 16F Mpo Female To 16F Mpo Female sm Patch Cord Low Loss Ofnr Polarity B
JTOPTICS® Trunk cable assemblies are composed of high-quality OFNP jacketed fiber optic cables used in data centers, telecom, and backbone applications for 400G / 800G connectivity. 16 Fiber Single Mode MPO Cable 16F MPO Female to 16F MPO Female SM Patch Cord Low Loss OFNR Polarity B trunk patc..
SPECIFICATIONS
Connector A MPO Female (16 Fiber)
Cable Jacket OFNR (Riser)
Insertion Loss 0.35dB Max
Polish APC to APC
Wavelength 1310/1550nm
Return Loss ≥60dB
Jacket OD 3.0mm
Installation Tensile Load 100 N
Operating Temp Range -10°C to +70°C
Fiber Mode OS2 SMF 9/125μm
Connector Make JTOPTICS / NISSIN
Connector B MPO Female (16 Fiber)
Minimum Bend Radius 30mm
Storage Temp Range -40°C to +85°C
Long-Term Tensile Load 50 N
Connector Quality Standard
All our own products can be purchased direct online or via our sales team. E-Mail: sales(@)jtoptics.com Phone: +91-8693099309 / 9699789777

Low Insertion Loss & High Performance

Comply with IEC 61754-7, TIA/EIA 604-5

Compliant for MPO/MTP® interfaces

Individually Packed with Test Report

100% 3D Factory Tested

High performance in IL & RL

Complied to ANSI/TIA-568-C.3, IEEE 802.3ba and adheres to ANSI/TIA-942

Bend Insensitive Fiber with Min. Bend Radius

  • Stock: In Stock
  • Model: JTMPS216OMOSFMOSFXX
  • MPN: JTMPS216OMOSFMOSFXX
₹ 7,400.00

Available Options

JTOPTICS® Trunk cable assemblies are composed of high-quality OFNP jacketed fiber optic cables used in data centers, telecom, and backbone applications for 400G / 800G connectivity. 16 Fiber Single Mode MPO Cable 16F MPO Female to 16F MPO Female SM Patch Cord Low Loss OFNR Polarity B trunk patch cord assemblies are used to interconnect QSFP-DD and QSFP-DD800 DR8 transceivers. MPO cables are factory pre-terminated, tested, and packed along with test reports. They are built with high-quality components of Japanese MT ferrules and JTOPTICS® brand connector kits. The trunk cable assemblies are composed of high-quality OFNP jacketed fiber optic cables. For more details, refer to the part code number JTMPS216OMOSFMOSFXX.

SPECIFICATIONS
Connector A MPO Female (16 Fiber)
Cable Jacket OFNR (Riser)
Insertion Loss 0.35dB Max
Polish APC to APC
Wavelength 1310/1550nm
Return Loss ≥60dB
Jacket OD 3.0mm
Installation Tensile Load 100 N
Operating Temp Range -10°C to +70°C
Fiber Mode OS2 SMF 9/125μm
Connector Make JTOPTICS / NISSIN
Connector B MPO Female (16 Fiber)
Minimum Bend Radius 30mm
Storage Temp Range -40°C to +85°C
Long-Term Tensile Load 50 N
Connector Quality Standard
