16 Fiber Om3 Mpo Cable 16F Mpo Female To 16F Mpo Female Om3 Patch Cord Low Loss Ofnp (Plenum) Polarity B

JTMPM316OMOSFMOSFXX Mpo Trunk Cables
Secured
Advanced Security
Free Shipping
Free delivery over ₹100,000
Free Returns
Hassle free returns

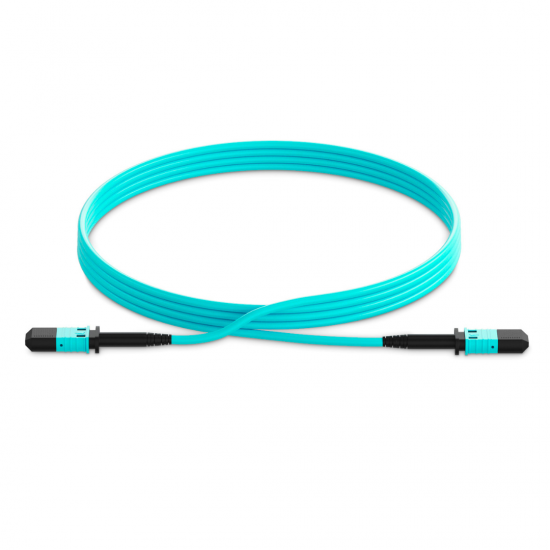

16 Fiber Om3 Mpo Cable 16F Mpo Female To 16F Mpo Female Om3 Patch Cord Low Loss Ofnp (Plenum) Polarity B
JTOPTICS® Trunk cable assemblies are composed of high-quality OFNP jacketed fiber optic cables used in data centers, telecom, and backbone applications for 400G / 800G connectivity. 16 Fiber OM3 MPO Cable 16F MPO Female to 16F MPO Female OM3 Patch Cord Low Loss OFNP (Plenum) Polarity trunk patch..
SPECIFICATIONS
Connector A MPO Female (16 Fiber)
Cable Jacket Plenum (OFNP)
Insertion Loss 0.7dB Max
Polish UPC to UPC
Wavelength 850/1300nm
Return Loss ≥30dB
Jacket OD 3.0mm
Installation Tensile Load 100 N
Operating Temp Range -10°C to +70°C
Fiber Mode OM3 50/125μm
Connector Make JTOPTICS / NISSIN
Connector B MPO Female (16 Fiber)
Minimum Bend Radius 30mm
Storage Temp Range -40°C to +85°C
Long-Term Tensile Load 50 N
Connector Quality Standard
All our own products can be purchased direct online or via our sales team. E-Mail: sales(@)jtoptics.com Phone: +91-8693099309 / 9699789777

Low Insertion Loss & High Performance

Comply with IEC 61754-7, TIA/EIA 604-5

Compliant for MPO/MTP® interfaces

Individually Packed with Test Report

100% 3D Factory Tested

High performance in IL & RL

Complied to ANSI/TIA-568-C.3, IEEE 802.3ba and adheres to ANSI/TIA-942

Bend Insensitive Fiber with Min. Bend Radius

  • Stock: In Stock
  • Model: JTMPM316OMOSFMOSFXX
  • MPN: JTMPM316OMOSFMOSFXX
₹ 7,400.00

Available Options

Add to Cart
Buy Now Ask Question
Eligible for Free Shipping
This product ships free when your order total crosses ₹100,000.

JTOPTICS® Trunk cable assemblies are composed of high-quality OFNP jacketed fiber optic cables used in data centers, telecom, and backbone applications for 400G / 800G connectivity. 16 Fiber OM3 MPO Cable 16F MPO Female to 16F MPO Female OM3 Patch Cord Low Loss OFNP (Plenum) Polarity trunk patch cord assemblies are used to interconnect QSFP-DD and QSFP-DD800 SR8 transceivers. MPO cables are factory pre-terminated, tested, and packed along with test reports. They are built with high-quality components of Japanese MT ferrules and JTOPTICS® brand connector kits. The trunk cable assemblies are composed of high-quality OFNP jacketed fiber optic cables. For more details, refer to the part code number JTMPM316OMOSFMOSFXX.

Top of Form

Bottom of Form

SPECIFICATIONS
Connector A MPO Female (16 Fiber)
Cable Jacket Plenum (OFNP)
Insertion Loss 0.7dB Max
Polish UPC to UPC
Wavelength 850/1300nm
Return Loss ≥30dB
Jacket OD 3.0mm
Installation Tensile Load 100 N
Operating Temp Range -10°C to +70°C
Fiber Mode OM3 50/125μm
Connector Make JTOPTICS / NISSIN
Connector B MPO Female (16 Fiber)
Minimum Bend Radius 30mm
Storage Temp Range -40°C to +85°C
Long-Term Tensile Load 50 N
Connector Quality Standard
