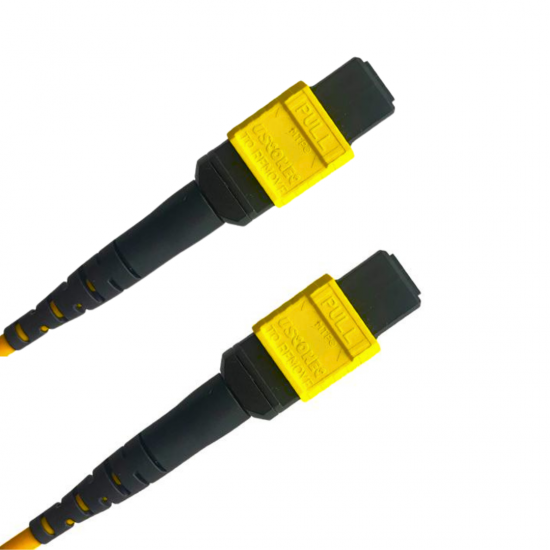

24 Fiber Sm Mtp® Trunk Cable 24F Mtp®-F To 24F Mtp®-F Sm Patch Cord Low Loss Ofnr G.657A1 Single Mode Cable Polarity A

JTMPSO224MPSFMPSFXX Mpo Trunk Cables
Secured
Advanced Security
Free Shipping
Free delivery over ₹100,000
Free Returns
Hassle free returns
24 Fiber Sm Mtp® Trunk Cable 24F Mtp®-F To 24F Mtp®-F Sm Patch Cord Low Loss Ofnr G.657A1 Single Mode Cable Polarity A
JTOPTICS MTP® pre-terminated Trunk Cables are designed for high density application which offers excellent benefits in terms on-site installation time and space saving. The trunk cable assemblies are composed of high quality LSZH jacketed fiber optic cables used in data center, telecom and backbone ..
SPECIFICATIONS
Connector A MTP Female (24 Fiber)
Cable Jacket LSZH
Insertion Loss 0.35dB Max
Polish APC to APC
Wavelength 1310/1550nm
Return Loss ≥60dB
Jacket OD 3.5mm
Installation Tensile Load 100 N
Operating Temp Range -10°C to +70°C
Fiber Mode OS2 9/125μm SM
Connector Make US Connect
Connector B MTP Female (24 Fiber)
Minimum Bend Radius 30mm
Storage Temp Range -40°C to +85°C
Long-Term Tensile Load 50 N
Connector Quality Standard
All our own products can be purchased direct online or via our sales team. E-Mail: sales(@)jtoptics.com Phone: +91-8693099309 / 9699789777

Low Insertion Loss & High Performance

Comply with IEC 61754-7, TIA/EIA 604-5

Compliant for MPO/MTP® interfaces

Individually Packed with Test Report

100% 3D Factory Tested

High performance in IL & RL

Complied to ANSI/TIA-568-C.3, IEEE 802.3ba and adheres to ANSI/TIA-942

Bend Insensitive Fiber with Min. Bend Radius

  • Stock: In Stock
  • Model: JTMPSO224MPSFMPSFXX
  • MPN: JTMPSO224MPSFMPSFXX
₹ 8,580.00

Available Options

Add to Cart
Buy Now Ask Question
Eligible for Free Shipping
This product ships free when your order total crosses ₹100,000.
JTOPTICS MTP® pre-terminated Trunk Cables are designed for high density application which offers excellent benefits in terms on-site installation time and space saving. The trunk cable assemblies are composed of high quality LSZH jacketed fiber optic cables used in data center, telecom and backbone application for 100G, 400G & 800G connectivity. MTP® cables are factory pre-terminated, tested and packed along with test reports. They are built with high-quality components of Japanese MT ferrules and JTOPTICS brand connector kits. The trunk cable assemblies are composed of high quality LSZH/OFNP jacketed fiber optic cables
SPECIFICATIONS
Connector A MTP Female (24 Fiber)
Cable Jacket LSZH
Insertion Loss 0.35dB Max
Polish APC to APC
Wavelength 1310/1550nm
Return Loss ≥60dB
Jacket OD 3.5mm
Installation Tensile Load 100 N
Operating Temp Range -10°C to +70°C
Fiber Mode OS2 9/125μm SM
Connector Make US Connect
Connector B MTP Female (24 Fiber)
Minimum Bend Radius 30mm
Storage Temp Range -40°C to +85°C
Long-Term Tensile Load 50 N
Connector Quality Standard
