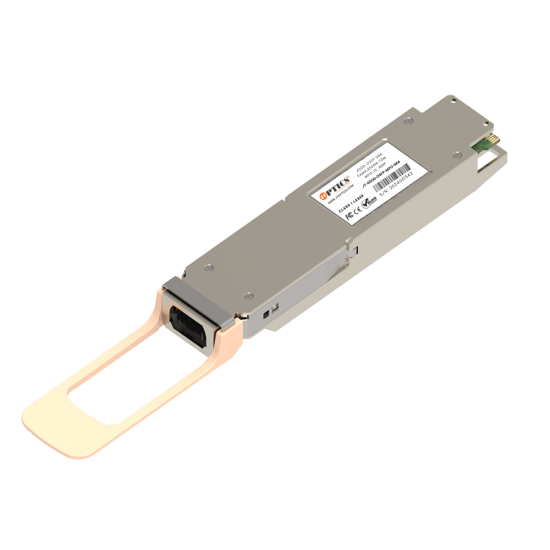

400G Osfp Sr4 Optical Transceiver 400Gbase-Sr4 Osfp Pam4 850Nm 100M Dom Mtp®/Mpo-12 Mmf Optical Module

400G OSFP SR4 transceiver modules are designed to facilitate 400 Gigabit Ethernet (GbE) links over short distances, supporting up to 100 meters using OM4 multimode fiber (MMF). These advanced modules adhere to industry standards, ensuring broad compatibility and seamless integration into existing network infrastructures.

JTOPTICS compliance with industry standards ensures broad compatibility and ease of integration, making them an excellent choice for upgrading network infrastructure to support higher data rates and increased performance.

Hot-pluggable OSFP Type 2 form factor

Supports 425Gb/s aggregate bit rate

Power dissipation <10W

Commercial case temperature range of 0°C to 70°C

Single 3.3V power supply

Maximum link length of 100m on OM4 multimode Fiber (MMF)

Aligned with IEEE 802.3db

4x100G PAM4 VCSEL-based 850nm transmitter

4x100G PAM4 retimed 400GAUI-4 electrical interface

MPO-12 receptacles

I2C management interface

RoHS compliant
