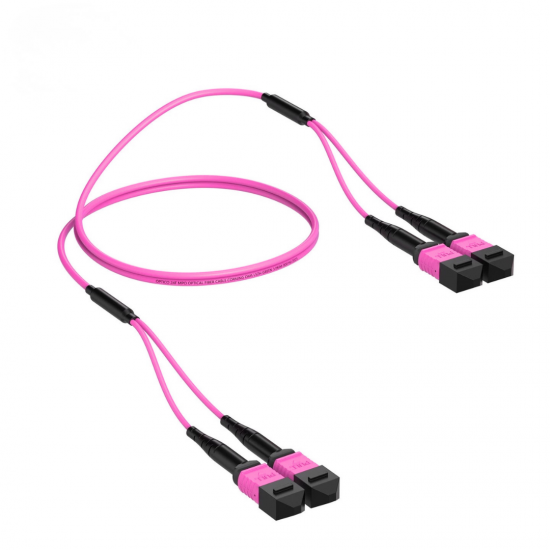

JTOPTICS 24 Fiber OM4 MPO Trunk Cable 2×12F MPO Female Distribution Cable

JTMPM42212MOSFMOSFXX HD Pre-Terminated Trunk Cable
New
Secured
Advanced Security
Free Shipping
Free delivery over ₹100,000
Free Returns
Hassle free returns
JTOPTICS 24 Fiber OM4 MPO Trunk Cable 2×12F MPO Female Distribution Cable
JTOPTICS 24 Fiber Multimode OM4 Breakout MPO Trunk Cable is a premium high-density fiber optic cabling solution engineered for high-speed data center, enterprise, cloud, and storage networking applications. Featuring 2×12 Fiber MPO Female to 2×12 Fiber MPO Female connectors, this OM4 multimode d..
SPECIFICATIONS
Connector A 2 x MPO Female (12 Fiber)
Cable Jacket Plenum (OFNP)
Insertion Loss 0.7dB Max
Polish UPC to UPC
Wavelength 850/1300nm
Return Loss ≥30dB
Jacket OD 3.5mm
Installation Tensile Load 100 N
Operating Temp Range -10°C to +70°C
Fiber Mode OM4 50/125μm
Connector Make JTOPTICS / NISSIN
Connector B 2 x MPO Female (12 Fiber)
Minimum Bend Radius 30mm
Storage Temp Range -40°C to +85°C
Long-Term Tensile Load 50 N
Connector Quality Standard
All our own products can be purchased direct online or via our sales team. E-Mail: sales(@)jtoptics.com Phone: +91-8693099309 / 9699789777

Low Insertion Loss & High Performance

Comply with IEC 61754-7, TIA/EIA 604-5

Compliant for MPO/MTP® interfaces

Individually Packed with Test Report

100% 3D Factory Tested

High performance in IL & RL

Complied to ANSI/TIA-568-C.3, IEEE 802.3ba and adheres to ANSI/TIA-942

Bend Insensitive Fiber with Min. Bend Radius

  • Stock: In Stock
  • Model: JTMPM42212MOSFMOSFXX
  • MPN: JTMPM42212MOSFMOSFXX

Available Options

Add to Cart
Buy Now Ask Question
Eligible for Free Shipping
This product ships free when your order total crosses ₹100,000.

JTOPTICS 24 Fiber Multimode OM4 Breakout MPO Trunk Cable is a premium high-density fiber optic cabling solution engineered for high-speed data center, enterprise, cloud, and storage networking applications. Featuring 2×12 Fiber MPO Female to 2×12 Fiber MPO Female connectors, this OM4 multimode distribution cable provides reliable, low-loss connectivity for backbone, spine-leaf, and structured cabling deployments.

Manufactured using OM4 50/125μm laser-optimized multimode fiber (LOMMF), this MPO trunk cable delivers exceptional bandwidth and low attenuation for 40G, 100G, 200G, and 400G Ethernet applications. Its compact, high-density design simplifies cable management, reduces installation time, and supports scalable network infrastructures.

SPECIFICATIONS
Connector A 2 x MPO Female (12 Fiber)
Cable Jacket Plenum (OFNP)
Insertion Loss 0.7dB Max
Polish UPC to UPC
Wavelength 850/1300nm
Return Loss ≥30dB
Jacket OD 3.5mm
Installation Tensile Load 100 N
Operating Temp Range -10°C to +70°C
Fiber Mode OM4 50/125μm
Connector Make JTOPTICS / NISSIN
Connector B 2 x MPO Female (12 Fiber)
Minimum Bend Radius 30mm
Storage Temp Range -40°C to +85°C
Long-Term Tensile Load 50 N
Connector Quality Standard

Write a review

All our own products can be purchased direct online or via our sales team. E-Mail: sales(@)jtoptics.com Phone: +91-8693099309 / 9699789777
