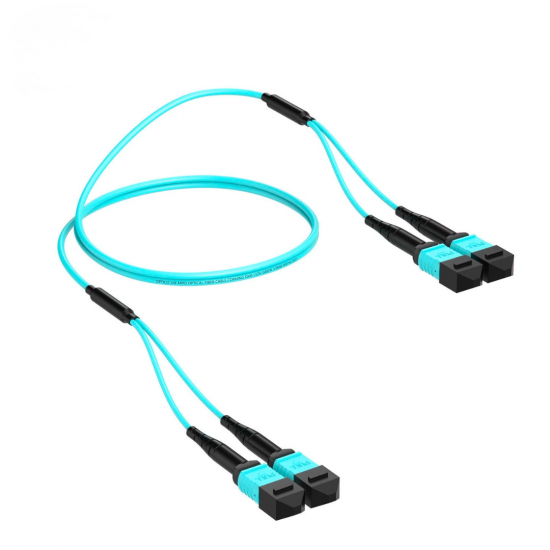

JTOPTICS 24 Fiber OM3 Breakout MPO Trunk Cable 2×12F MPO Female to 2×12F MPO Female

JTMPM32212MOSFMOSFXXHD Pre-Terminated Trunk Cable
New
Secured
Advanced Security
Free Shipping
Free delivery over ₹100,000
Free Returns
Hassle free returns
JTOPTICS 24 Fiber OM3 Breakout MPO Trunk Cable 2×12F MPO Female to 2×12F MPO Female
JTOPTICS 24 Fiber Multimode OM3 Breakout MPO Trunk Cable is a high-performance, high-density fiber optic cabling solution designed for modern data centers, enterprise networks, cloud computing, and storage applications. Featuring 2×12 Fiber MPO Female to 2×12 Fiber MPO Female connectors, this OM..
SPECIFICATIONS
Connector A 2 x MPO Female (12 Fiber)
Cable Jacket Plenum (OFNP)
Insertion Loss 0.7dB Max
Polish UPC to UPC
Wavelength 850/1300nm
Return Loss ≥30dB
Jacket OD 3.5mm
Installation Tensile Load 100 N
Operating Temp Range -10°C to +70°C
Fiber Mode OM3 50/125μm
Connector Make JTOPTICS / NISSIN
Connector B 2 x MPO Female (12 Fiber)
Minimum Bend Radius 30mm
Storage Temp Range -40°C to +85°C
Long-Term Tensile Load 50 N
Connector Quality Standard
All our own products can be purchased direct online or via our sales team. E-Mail: sales(@)jtoptics.com Phone: +91-8693099309 / 9699789777

Low Insertion Loss & High Performance

Comply with IEC 61754-7, TIA/EIA 604-5

Compliant for MPO/MTP® interfaces

Individually Packed with Test Report

100% 3D Factory Tested

High performance in IL & RL

Complied to ANSI/TIA-568-C.3, IEEE 802.3ba and adheres to ANSI/TIA-942

Bend Insensitive Fiber with Min. Bend Radius

  • Stock: In Stock
  • Model: JTMPM32212MOSFMOSFXX
  • MPN: JTMPM32212MOSFMOSFXX

Available Options

Add to Cart
Buy Now Ask Question
Eligible for Free Shipping
This product ships free when your order total crosses ₹100,000.

JTOPTICS 24 Fiber Multimode OM3 Breakout MPO Trunk Cable is a high-performance, high-density fiber optic cabling solution designed for modern data centers, enterprise networks, cloud computing, and storage applications. Featuring 2×12 Fiber MPO Female to 2×12 Fiber MPO Female connectors, this OM3 multimode distribution cable provides efficient, low-loss connectivity for backbone, horizontal, and structured cabling systems.

Constructed with OM3 50/125μm laser-optimized multimode fiber (LOMMF), this breakout MPO trunk cable delivers reliable performance for 10G, 40G, and 100G Ethernet applications while providing a scalable solution for high-density network environments. Its compact design minimizes cable congestion, improves airflow, and simplifies installation and cable management.

SPECIFICATIONS
Connector A 2 x MPO Female (12 Fiber)
Cable Jacket Plenum (OFNP)
Insertion Loss 0.7dB Max
Polish UPC to UPC
Wavelength 850/1300nm
Return Loss ≥30dB
Jacket OD 3.5mm
Installation Tensile Load 100 N
Operating Temp Range -10°C to +70°C
Fiber Mode OM3 50/125μm
Connector Make JTOPTICS / NISSIN
Connector B 2 x MPO Female (12 Fiber)
Minimum Bend Radius 30mm
Storage Temp Range -40°C to +85°C
Long-Term Tensile Load 50 N
Connector Quality Standard
