72 Fiber Single Mode Breakout Mpo Trunk Cable 6 x 12F Mpo (F) to 6 x 12F Mpo (F) Os2 Distribution Cable

JTMPS2612MOSFMOSFXX HD Pre-Terminated Trunk Cable
Secured
Advanced Security
Free Shipping
Free delivery over ₹100,000
Free Returns
Hassle free returns

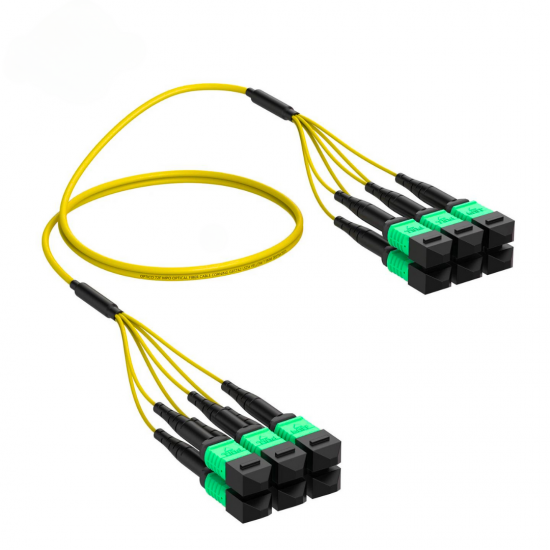

72 Fiber Single Mode Breakout Mpo Trunk Cable 6 x 12F Mpo (F) to 6 x 12F Mpo (F) Os2 Distribution Cable
JTOPTICS® 72 core MPO/MTP Trunk Fiber Optic Cable ribbon and trunk multi-core cable assemblies facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environment, reducing network installation or reconfiguration time and cost. MTP/MPO are used to interconne..
SPECIFICATIONS
Connector A 6 x MPO Female (12 Fiber)
Cable Jacket OFNR (Riser)
Insertion Loss 0.35dB Max
Polish APC to APC
Wavelength 1310/1550nm
Return Loss ≥60dB
Jacket OD 9 mm
Installation Tensile Load 100 N
Operating Temp Range -10°C to +70°C
Fiber Mode OS2 SMF 9/125μm
Connector Make JTOPTICS / NISSIN
Connector B 6 x MPO Female (12 Fiber)
Minimum Bend Radius 30mm
Storage Temp Range -40°C to +85°C
Long-Term Tensile Load 50 N
Connector Quality Standard
All our own products can be purchased direct online or via our sales team. E-Mail: sales(@)jtoptics.com Phone: +91-8693099309 / 9699789777

Low Insertion Loss & High Performance

Comply with IEC 61754-7, TIA/EIA 604-5

Compliant for MPO/MTP® interfaces

Individually Packed with Test Report

100% 3D Factory Tested

High performance in IL & RL

Complied to ANSI/TIA-568-C.3, IEEE 802.3ba and adheres to ANSI/TIA-942

Bend Insensitive Fiber with Min. Bend Radius

  • Stock: In Stock
  • Model: JTMPS2612MOSFMOSFXX
  • MPN: JTMPS2612MOSFMOSFXX
₹ 12,400.00

Available Options

Add to Cart
Buy Now Ask Question
Eligible for Free Shipping
This product ships free when your order total crosses ₹100,000.

JTOPTICS® 72 core MPO/MTP Trunk Fiber Optic Cable ribbon and trunk multi-core cable assemblies facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environment, reducing network installation or reconfiguration time and cost. MTP/MPO are used to interconnect cassettes, panels, or fan outs

SPECIFICATIONS
Connector A 6 x MPO Female (12 Fiber)
Cable Jacket OFNR (Riser)
Insertion Loss 0.35dB Max
Polish APC to APC
Wavelength 1310/1550nm
Return Loss ≥60dB
Jacket OD 9 mm
Installation Tensile Load 100 N
Operating Temp Range -10°C to +70°C
Fiber Mode OS2 SMF 9/125μm
Connector Make JTOPTICS / NISSIN
Connector B 6 x MPO Female (12 Fiber)
Minimum Bend Radius 30mm
Storage Temp Range -40°C to +85°C
Long-Term Tensile Load 50 N
Connector Quality Standard
