Optical Transceivers
Optical Transceivers for Next-Gen Network
JTOPTICS® data center Solution simplifies the delivery of network
services by providing reliable infrastructure components assembled and tested
in a factory-controlled environment. JTOPTICS® end-to-end products are an ideal
solution for data centers specially when time for traditional cable
installation and termination is limited and offer quick plug-in deployment for
trouble free network performance.
Powering High-Speed Connectivity: Optical Transceivers for Data Center and Telecom Networks
JTOPTICS® Optical transceivers are critical components that enable high-speed data transmission over fiber optic networks in both data centers and telecom systems. These compact modules convert electrical signals into optical signals—and vice versa—supporting various data rates like 10G, 25G, 40G, 100G, 200G, 400G, and 800G.
Designed for plug-and-play flexibility, optical transceivers offer seamless integration with switches, routers, and servers, ensuring reliable, long-distance, and high-bandwidth communication. They are essential for scalable network infrastructure, helping businesses meet the demands of cloud computing, AI, streaming, and real-time applications with exceptional speed and efficiency.
Types

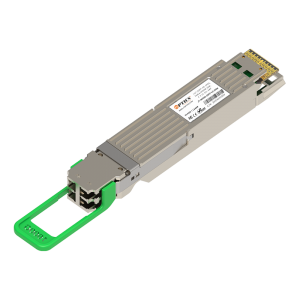

JTOPTICS 1.6T
OSFP-XD 2FR4 Transceiver is engineered to transmit and receive serial optical
data links at rates up to 212.5 Gb/s per channel using PAM4 modulation over
single-mode fiber. This small-form-factor, hot-pluggable transceiver module
features an integrated high-performance EML laser. It co..

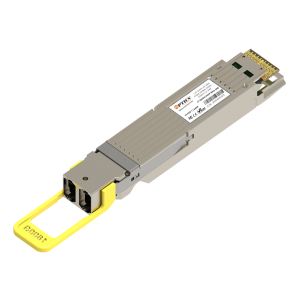

JTOPTICS
1.6T OSFP-XD DR8 optical transceiver, housed in an OSFP-XD package, is designed
to enable 1.6T Ethernet connections over distances of up to 500 meters using
single-mode fiber. It boasts 16 independent electrical input/output channels,
each operating at 106.25Gbps, and 8 independent optical ..

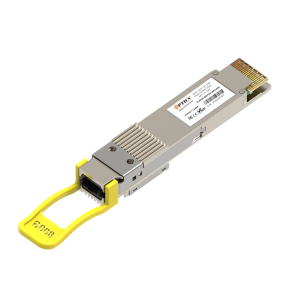

JTOPTICS® QSFPDD 800GBASE DR8 is offers a transmission distance of up to 500m over a single mode fiber link. Quad Small Form Factor Pluggable Double Density (QSFP DD) transceiver with optical MPO16/MTP-16 connector is designed for long range single mode 800 Gigabit Ethernet (800GbE) high speed appli..

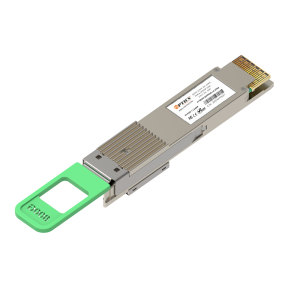

800G Qsfp-Dd 2Fr4 Optical Transceiver 800Gbase-2Fr4 Qsfp-Dd Pam4 2Km Dom 2 Xcs Dx Smf Optical Module
JTOPTICS
QSFP-DD800 2*FR4 transceiver is a high-quality optical transceiver designed for
800 Gigabit Ethernet links over 2 km of single-mode fiber. This 800G FR 2km
transceiver features 8 independent electrical input/output channels, each
operating at speeds up to 106.25 Gbps. Comprising two transmi..

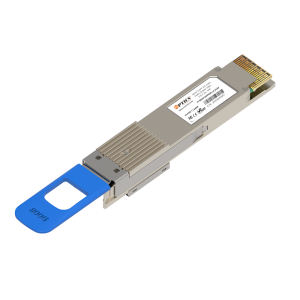

JTOPTICS
800GBASE-2LR4 QSFP-DD800 transceiver supports link lengths of up to 10 km over
single-mode fiber (SMF) via dual LC connectors. It complies with IEEE 802.3ck, QSFP-DD
MSA, and CMIS Rev 5.0 standards. The transceiver features built-in digital
diagnostics monitoring (DDM) for real-time access ..

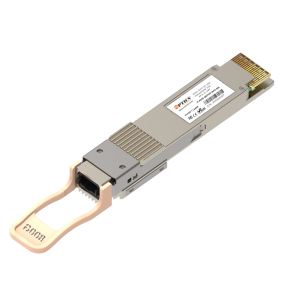

JTOPTICS® 800GBASE SR8 100m QSFP DD optical transceiver, 800G QSFP DD SR8 (JT 800G QSFPDD SR8) is designed to operate over multimode fiber systems using a nominal wavelength of 850nm (MMF). It is compliant with the QSFP28 MSA and IEEE 802.3cd 200GBASE SR4. It integrates eight data lanes in eac..
The Arista QDD-800G-2FR4 is an advanced 800GBASE-2FR4 optical transceiver module optimized for high-speed data transmission. Operating at a 1310nm wavelength and utilizing PAM4 modulation, it delivers a transmission range of up to 2 kilometers over single-mode fiber (SMF). This QDD transceiver suppo..
The H3C QSFPDD-800G-DR8-SM1310 is an 800GBASE-DR8 optical transceiver tailored for ultra-high-speed data transmission over single-mode fiber (SMF). It operates at a 1310nm wavelength using PAM4 modulation, achieving a reach of up to 500 meters. This transceiver supports both 2x 400G-DR4 and 8x 100G-..
The H3C QSFPDD-800G-DR8-SM1310 is an 800GBASE-DR8 optical transceiver optimized for high-speed data transmission over single-mode fiber (SMF). Operating at a 1310nm wavelength with PAM4 modulation, it provides a transmission reach of up to 500 meters. This QDD transceiver supports both 2x 400G-DR4 a..
The H3C QSFPDD-800G-VR8-MM850-DMPO is an 800GBASE-SR8 transceiver designed for ultra-high-speed data transmission. Using the QSFP-DD form factor, it operates over multimode fiber (MMF) with an 850nm wavelength and supports PAM4 modulation. It delivers a reach of up to 100 meters and features MPO-16/..
The Juniper QDD-2X400G-DR4 is an 800GBASE-DR8 transceiver designed for high-speed data transfer in large-scale networks. It operates over single-mode fiber (SMF) with a 1310nm wavelength and PAM4 modulation, offering a reach of up to 500 meters. This QDD transceiver supports both 2x 400G-DR4 and 8x ..
The Juniper QDD-2X400G-FR4-P is an 800GBASE-2FR4 optical transceiver module designed for high-performance data communication. Operating at a wavelength of 1310nm and utilizing PAM4 modulation, it provides an impressive reach of up to 2 kilometers over single-mode fiber (SMF). This QDD transceiver su..
Precision Perfected: Optical Transceiver Quality Testing
At JTOPTICS® every optical transceiver undergoes a meticulous quality testing process to ensure flawless data transmission, long-term reliability, and compliance with international standards. These compact yet powerful components are critical to high-speed network performance, and our testing ensures they deliver at every level.
Eye Diagram Analysis:
Checks signal integrity and waveform accuracy.
Bit Error Rate (BER) Testing:
Ensures error-free data transmission under load.
Temperature Cycling Test:
Validates performance across varying temperature conditions.
Compatibility & Link Testing:
Confirms seamless integration with major OEM switches and routers.
Power Consumption Check:
Verifies efficiency and compliance with power standards.
Eye Diagram Analysis:
Checks signal integrity and waveform accuracy.
Bit Error Rate (BER) Testing:
Ensures error-free data transmission under load.
Temperature Cycling Test:
Validates performance across varying temperature conditions.
Compatibility & Link Testing:
Confirms seamless integration with major OEM switches and routers.
Power Consumption Check:
Verifies efficiency and compliance with power standards.
MSA Compliant with Industry Standards
From 100M to 800G, Multi-Source Agreement (MSA) specs and coded solutions are compatible with over 90 OEMs.
Comprehensive Form Factor Availability
Includes SFP, SFP+, SFP28, QSFP+, QSFP28, CFP2/4, QSFP-DD, and OSFP form factors for comprehensive compatibility and versatility.
100% Compatibility
Fully compatible with leading switch and server OEMs, including Arista, Cisco, Dell, Intel, Juniper, Mellanox, and other major brands.
White Labeling
We offer fully customizable transceivers, DAC, and AOC cables—branded with your identity. From labeling to packaging, our solutions are tailored to reflect your brand while delivering high-performance connectivity.
Mitigated Risk
Our products undergo thorough testing for optical compliance and system compatibility, ensuring optimal performance.
SFP Transceivers
The Small Form Factor Pluggable (SFP) is renowned as the prevailing format for optical transceivers, yet it does possess certain constraints. SFP transceivers exhibit hot-swappable and pluggable characteristics, enabling seamless installation and removal. Typically employed in 1Gbps connections, SFP utilizes various connectors including LC Duplex, LC Simplex, RJ45, and SC Simplex, facilitating transmission distances of up to 160km.
SFP+ Transceivers
SFP+ represents an enhanced iteration of the SFP standard, boasting increased data capabilities over its predecessor. With a maximum transmission speed of 16Gbps, SFP+ is commonly harnessed in Ethernet connections or 10Gbps fiber networks. Unlike SFP, SFP+ employs a distinct encoding method, enabling it to convey more data within a comparable hardware framework. Data transmission rates are available at 8Gbps, 10Gbps, and 16Gbps, offering versatility for various network requirements. SFP+ modules can span distances ranging from 30m to 120km, and they are compatible with a range of connector types such as LC Duplex, LC Simplex, and RJ45.
SFP28 Transceivers
SFP28 represents an advancement in speed over its predecessor, the SFP+ form factor. Its electrical and mechanical specifications were established in 2014 under the SFF Committee document SFF-8402, alongside earlier specifications such as SFF-8472 and SFF-8432. SFP28 is specifically designed to support applications requiring speeds ranging from 25Gb/s to 28Gb/s, including 25Gb/s Ethernet and 32GFC Fibre Channel.
QSFP+ Transceivers
The QSFP+ functions similarly to other QSFP-style transceivers, supporting data rates of 40Gbps and higher. It is an Enhanced Quad Small Form-factor Pluggable (QSFP+) transceiver, featuring four channels and hot-pluggable capabilities. Compatible with LC Duplex and MPO-12 fiber connectors, the QSFP+ offers larger dimensions compared to SFP+ transceivers and can cover distances of up to 40km. It remains the predominant form factor for achieving data rates of 40Gbps.
QSFP28 Transceivers
The QSFP28 (Quad Small Form Pluggable) transceiver form factor was introduced to facilitate multi-lane (quad) optical transceivers, such as those used in 100GbE and 128GFC, accommodating various optical connectors including 4+4 MPO and duplex LC. Developed in 2013, QSFP28 supports electrical interfaces with speeds ranging from 25Gb/s to 28Gb/s per lane, catering to applications like 100Gb/s Ethernet, 128GFC Fibre Channel, and EDR InfiniBand. Its specifications are publicly defined by SFF Committee standards SFF-8636 and SFF-8665. QSFP28 has become the standard interface for 100G applications, offering configurations ranging from 100m using multimode to 80km using single-mode.
QSFP56 Transceivers
The QSFP56 standard, established in 2019, represents a significant leap in data transfer rates compared to its predecessor, QSFP28, achieving a maximum speed of 200 Gbps. This enhanced performance is achieved through parallel fibers and 8 x 25G wavelengths, or by leveraging PAM4 modulation and an internal multiplexer to transmit 50G over 4 wavelengths. QSFP56 transceivers come in various configurations, utilizing OM4 for distances up to 100m and OS2 for distances of up to 10km. Supported connectors include LC or MPO-12.
QSFP-DD Transceivers
The QSFP-DD (Quad Small Form-factor Pluggable Double Density) standard, designed to be backward compatible with previous QSFP versions, revolutionizes high-speed connectivity with an additional row of contacts, allowing for an 8-lane electrical interface. Compatible with LC and MPO-16 connectors, QSFP-DD facilitates seamless integration into various network architectures. Furthermore, it introduces a new connector – the CS connector, featuring 2 x CS Duplex connectors on a single transceiver. This innovative design supports breakout applications for 2x100G and 2x200G connections.
OSFP-800G Transceivers
The QSFP+ functions similarly to other QSFP-style transceivers, supporting data rates of 40Gbps and higher. It is an Enhanced Quad Small Form-factor Pluggable (QSFP+) transceiver, featuring four channels and hot-pluggable capabilities. Compatible with LC Duplex and MPO-12 fiber connectors, the QSFP+ offers larger dimensions compared to SFP+ transceivers and can cover distances of up to 40km. It remains the predominant form factor for achieving data rates of 40Gbps.
