200G Transceivers Guide

200G Transceivers Guide

200G transceivers, Active Optical Cables (AOCs), and Direct Attach Copper (DAC) cables are essential for high-speed networking in modern data centers, enterprise networks, and high-performance computing environments. These components support data rates of up to 200 Gigabits per second (Gbps), ensuring efficient and reliable connectivity.

Accelerating Data Center Performance with 200G Transceivers

JTOPTICS® 200G transceivers are designed to meet the growing demand for ultra-high-speed connectivity in modern data centers. Ideal for high-bandwidth applications such as cloud computing, virtualization, and AI/ML workloads, these modules enable efficient switch-to-switch and server interconnects. With reduced latency and increased throughput, they support scalable infrastructure in hyperscale and enterprise environments.

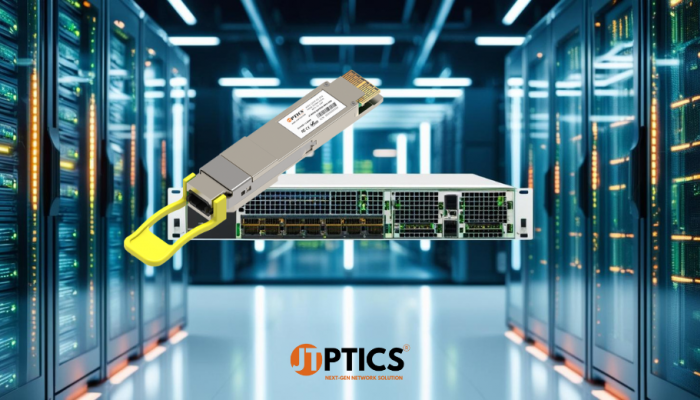

JTOPTICS 200G Optical Transceiver – Scalable Networking Solution for Modern Data Centers
JTOPTICS 200G Optical Transceiver – Scalable Networking Solution for Modern Data Centers
200G QSFP56 SR4 Transceiver
200G QSFP56 SR4 Transceiver
The 200G QSFP56 SR4 transceiver is a cutting-edge optical module designed to meet the demands of high-speed data transmission in modern data centers and enterprise networks. Supporting data rates up to 200 Gigabits per second (Gbps), this transceiver is essential for enhancing network performance and efficiency. The QSFP56 (Quad Small Form-factor Pluggable 56) form factor is compact and hot-pluggable, allowing for high port density and ease of installation and maintenance without disrupting network operations. The SR4 (Short Reach) designation indicates its optimization for short-distance applications, typically up to 100 meters using OM4 multimode fiber.
200G QSFP56 FR4 Transceiver
200G QSFP56 FR4 Transceiver
The 200G QSFP56 FR4 transceiver is a high-performance optical module designed for long-distance data transmission at data rates of up to 200 Gigabits per second (Gbps). This transceiver is essential for enhancing connectivity in modern data centers, enterprise networks, and high-performance computing environments. The QSFP56 (Quad Small Form-factor Pluggable 56) form factor is compact and hot-pluggable, enabling high port density and simplifying installation and maintenance. The FR4 (4-Wavelength) designation signifies its ability to transmit data over longer distances, typically up to 2 kilometers, using single-mode fiber.

Frequently Asked Questions

These terms describe the bandwidth of an ethernet link, and the number of lanes used to achieve this bandwidth. Every front panel port of an ethernet switch consists of one or more electrical lanes that transmit and receive ethernet data. For 10G SFP, 25G SFP or 50G SFP ports, a single electrical lane is used (in each direction) and modulated at 10G, 25G or 50G. For higher data rates, multiple lanes are required.

For example, a 100G QSFP28 port uses 4 lanes, with each lane running at 25Gb/s – i.e., a ‘100G-4’ interface. The number before the letter ‘G’ indicates the bandwidth of the ethernet link, and the number after the ‘-‘ indicates the number of data lanes required to achieve this bandwidth. A 200G QSFP56 port uses 4 lanes, with each lane running at 50Gb/s – i.e., a 200G-4 interface.

200G/port systems allow datacenters and high-performance computing environments to meet growing bandwidth needs at lower cost and power per gigabit. Key benefits include:

•           Increase in bandwidth density by a factor of 2 when compared to 100G/port systems.

•           Easy connectivity to compute nodes and Network Interface Cards (NICs) that use 50Gb/s PAM-4 per lane. NICs are transitioning from using 10G/25G SFP to 50G SFP ports, and from 100G QSFP28 ports to 100G-2 / 200G-4 QSFP56 ports.

•           Upgrade leaf-to-spine links from 100G to 200G with no change to existing fiber plant.

•           Reduce the number of optical fiber links, connectors and patch panels by a factor of 2 when compared to 100G/port platforms.

Yes, if the 100G links use either of the following types of fiber, then the links can be upgraded to 200G without changing any of the underlying fiber connectivity:

i)          Duplex single mode fiber with a max length of 2km, or

ii)         Parallel multimode fiber, with a max length of 70m for OM3, or 100m for OM4 fiber.

The QSFP-200G-FR4 uses the same fiber type and connectors (duplex LC UPC/PC, SMF) as all 100G duplex SMF optics (such as 100G-CWDM4, 100G-LR4/LRL4, 100G-DR/FR/LR).

The QSFP-200G-SR4 uses the same fiber type and connectors (MPO-12 UPC/PC, parallel MMF) as the 100G- SR4/XSR4, enabling simple 100G-to-200G upgrade with no change to fiber.

No. There is no industry standard for 200G over duplex MMF. For operation over MMF, JTOPTICS offers the QSFP- 200G-SR4, which uses parallel multimode optical fiber using an MPO-12 optical connector – i.e. the same fiber type and fiber connector as used for 100-SR4.

They all refer to the same transceiver type. The electrical data path interface of a 200G QSFP consists of 4 lanes, with each lane carrying 50Gbit/s of data when configured for 200GE operation. Each lane of a 200G QSFP is designed to handle up to 56Gbit/s, hence it is sometimes referred to as a QSFP56.

All 200G QSFP modules utilize 4x electrical lanes in each direction (4 transmit lanes and 4 receive lanes), operating at a data rate of 50Gb/s PAM-4, enabling an aggregate bandwidth of 200Gb/s. All JTOPTICS 200G QSFPs are dual-rate, which means the electrical interface can also be configured to operate at 4x 25Gb/s NRZ, for an aggregate bandwidth of 100Gb/s

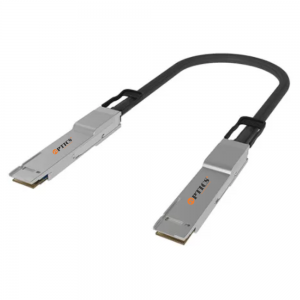

JTOPTICS QSFP56 passive copper cable assembly feature eight differential copper pairs, providing four data transmission channels at speeds up to 56Gbps (PAM4) per channel, and meets 200G Ethernet and InfiniBand Enhanced Data Rate (EDR) requirements. Available in a broad range of wire gages-from 26AW..
₹ 8,627.00
JTOPTICS® QSFPDD 200GBASE-FR4 is engineered for utilization in 200 Gigabit Ethernet connections across single-mode fiber networks. This module is capable of converting 4-channel 53.125 Gbps electrical data into 4-channel optical signals, subsequently multiplexing them into a single channel for 212.5..
₹ 109,091.00
JTOPTICS® 200Gb/s-LR4 transceiver module is meticulously crafted for deployment in 200 Gigabit Ethernet connections over SMF28 single-mode fiber. Compliant with the QSFP MSA and IEEE 802.3bs 200GBASE-LR4 specifications, each lane operates at a bit rate of 53.125 Gb/s, contributing to an aggregate da..
₹ 229,211.00
JTOPTICS® 200GBASE-SR4 100m QSFP56 optical transceivers are specifically crafted for deployment in 200Gigabit Ethernet connections across OM3/OM4/OM5 multimode fiber environments. These transceivers adhere to the QSFP MSA standards and comply with the IEEE 802.3cd 200GBASE-SR4 specifications. Digita..
₹ 26,099.00
The Arista QSFP-200G-FR4 is a high-performance 200GBASE-FR4 QSFP56 optical transceiver designed for efficient data transmission over single-mode fiber (SMF). Operating at a wavelength of 1310nm, this transceiver module offers an impressive reach of up to 2 kilometers, making it suitable for long-dis..
₹ 109,091.00
The Arista QSFP-200G-SR4 is a high-performance 200GBASE-SR4 QSFP56 optical transceiver designed for efficient data transmission over multimode fiber (MMF). Operating at an 850nm wavelength, this transceiver module provides a reliable reach of up to 100 meters, making it suitable for short-range appl..
₹ 26,099.00
The Cisco QDD-200-CU is a 200G DAC (Direct Attach Copper) cable engineered for optimal connectivity in high-performance networking environments. Featuring QSFP56 connectors on both ends, this passive twinax copper cable provides a robust solution for short-distance data transmission, typically up to..
₹ 8,627.00
The Cisco QSFP-200G-FR4-S is a high-performance 200GBASE-FR4 QSFP56 optical transceiver designed for efficient data transmission over single-mode fiber (SMF). Operating at a wavelength of 1310nm, this transceiver module supports a reliable reach of up to 2 kilometers, making it ideal for long-distan..
₹ 109,091.00
The Cisco QSFP-200G-SR4-S is a high-performance 200GBASE-SR4 QSFP56 optical transceiver designed for efficient data transmission over multimode fiber (MMF). Operating at an 850nm wavelength, this transceiver module provides a reliable reach of up to 100 meters, making it ideal for short-range applic..
₹ 26,099.00
The Dell 470-ADFD is a high-performance 200G DAC (Direct Attach Copper) cable, designed to facilitate efficient data transmission in modern networking environments. Featuring QSFP56 connectors on both ends, this passive twinax copper cable provides a reliable connection for short-distance applicatio..
₹ 8,627.00
The Finisar FTCC8612E2PCM is a high-performance 200GBASE-SR4 QSFP56 optical transceiver designed for efficient data transmission over multimode fiber (MMF). Operating at an 850nm wavelength, this transceiver module supports a reliable reach of up to 100 meters, making it ideal for short-range applic..
₹ 26,099.00
The HPE Aruba P06149-B21 is a high-performance 200G DAC (Direct Attach Copper) cable designed for efficient data transmission between networking devices. This passive twinax copper cable features QSFP56 connectors on both ends, providing a reliable and cost-effective solution for short-distance conn..
₹ 8,627.00
Showing 1 to 12 of 33 (3 Pages)
